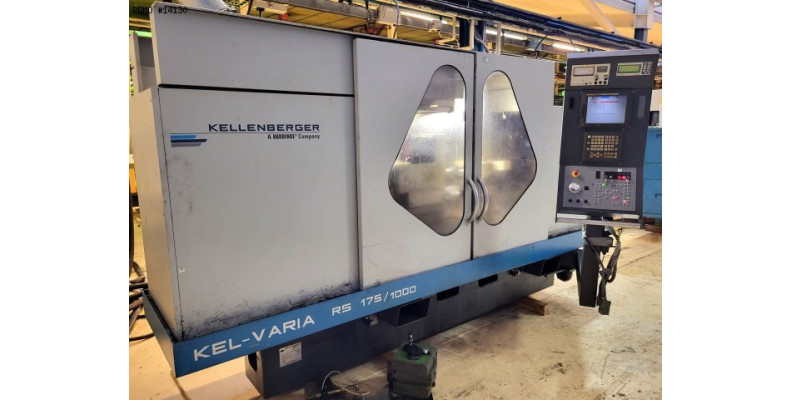

Kellenberger KEL-VARIA RS 175/1000 4 ejes

Rectificación / afilado / rodaje / rebarbado / pulido Rectificadora cilindrica cnc

14130

Especificacion técnica a descargar

Marca : Kellenberger

Modelo : KEL-VARIA RS 175/1000

Año : 2004

N° Serie : 650621

14130

Kellenberger KEL-VARIA RS 175/1000 4 ejes

Rectificación / afilado / rodaje / rebarbado / pulido Rectificadora cilindrica cnc

Especificacion técnica a descargar

Marca : Kellenberger

Modelo : KEL-VARIA RS 175/1000

Año : 2004

N° Serie : 650621

Preguntar por un precio

Características

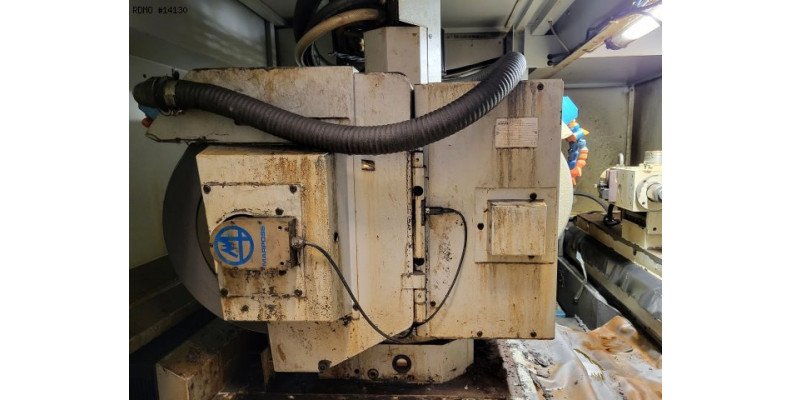

CAPACITY - center height : 175 [mm] - distance between centers : 1000 [mm] - max. workpiece weight : 150 [kg] - travels (Z/X) : 1.150 x 320 [mm] - feeds max (Z/X) : 15 / 7,5 [m/min] - table swivelling : 0 / +9 [°] RS TYPE WHEELHEAD - type : 2 external wheels right / right - travel B-axis : -210 / +30 [°] - indexing precision B-axis : 2,5 [°] - wheel dimensions (Ø x width x bore) T1 : 500 x 100 x 203 [mm] - wheel dimensions (Ø x width x bore) T2 : 500 x 100 x 203 [mm] - motor power : 9,2 [kW] - speeds : 1.500 [rpm] WORKHEAD - type of cone : MT5 - speeds : 8-800 [rpm] - power : 2,8 [kW] TAILSTOCK - type of cone : MT4 - quill stroke : 50 [mm] DIMENSIONS - floor space : 3.600 x 2.000 [mm] - height : 2.000 [mm] - weight : 6.000 [kg] ELECTRICS - voltage : 400 [V] - frequency : 50 [Hz] - installed power : 28 [kVA] HOURS - working hours : 11.715 [h]

Equipamiento

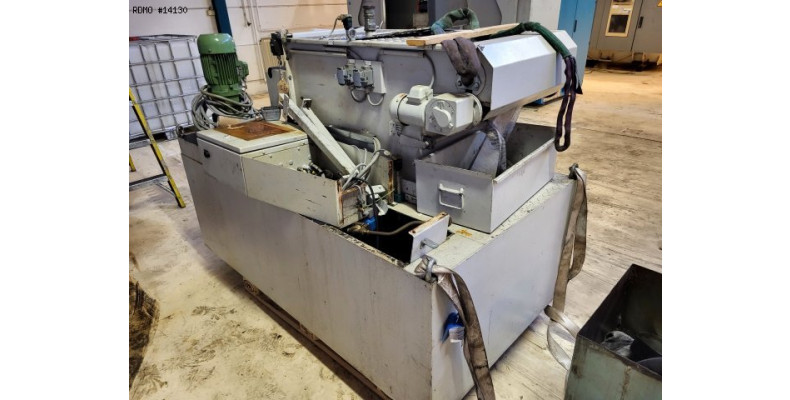

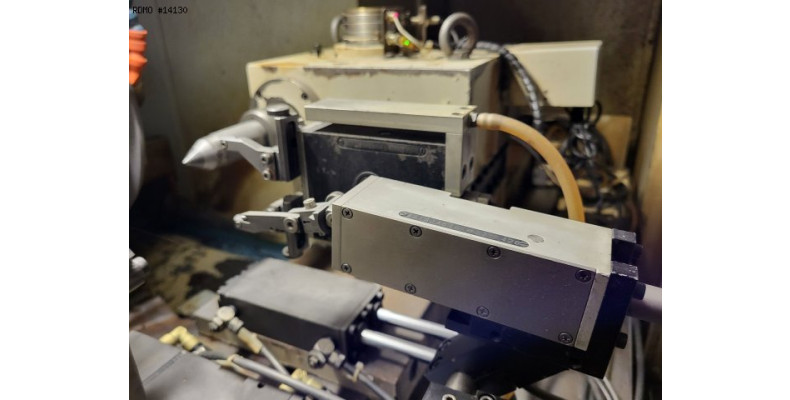

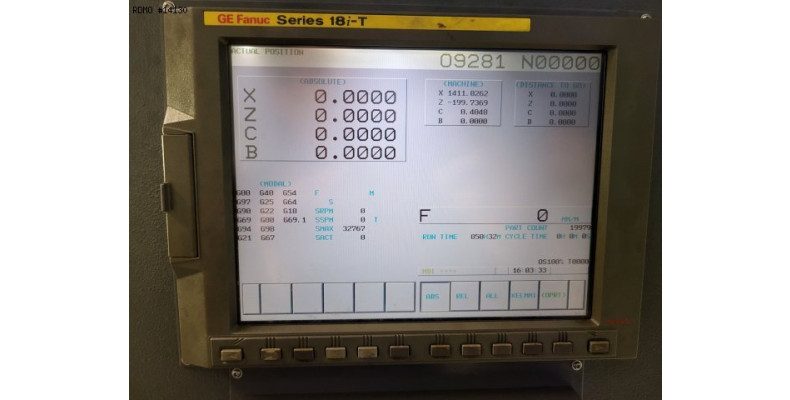

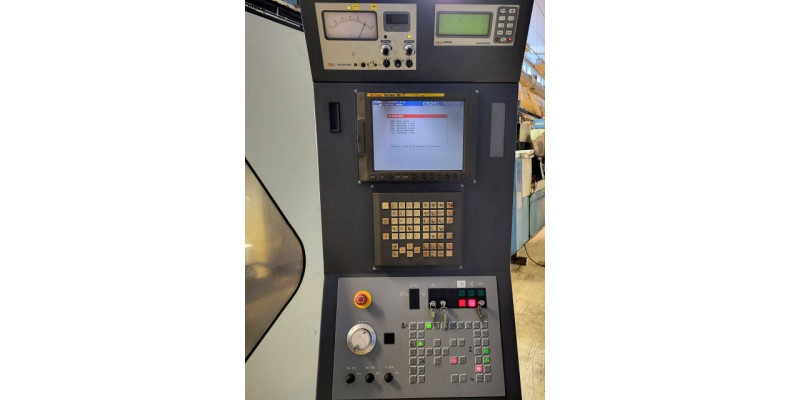

- CNC FANUC 18i-T - electronic handwheel - Interface : PCMCIA - linear scales on axis X/Z - CNC controlled C axis for workpiece indexing - tailstock with hydraulic automatic retractation and fine adjustment of concentricity - electronic contact detection device : MARPOSS E80 - autocalibration device with diameter probe : MARPOSS - autocalibration device with lenght probe : MARPOSS - dynamic balancing device for both wheels : MARPOSS E82 - dressing device upon tailstock - 2 fix dressing devices upon bed - coolant tank : 1000 [l] * with paper filtering unit : KNOLL HF150/1000 - dust extractor : 3NINE Lina - balancing shaft - balancing support - 2 wheel-holders - 2 wheels - collection of centers - collection of spare parts
