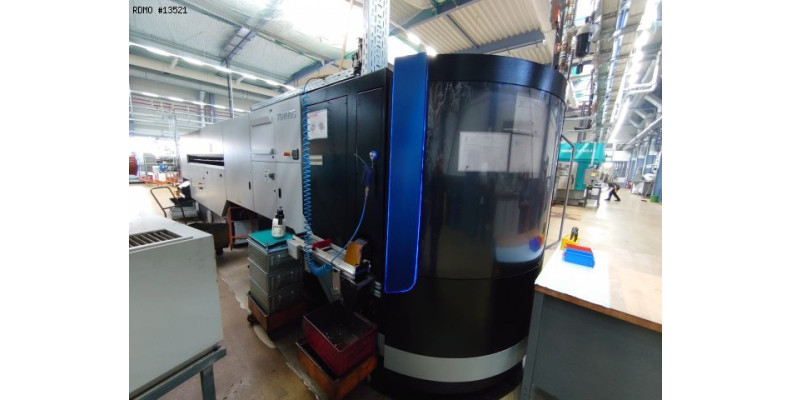

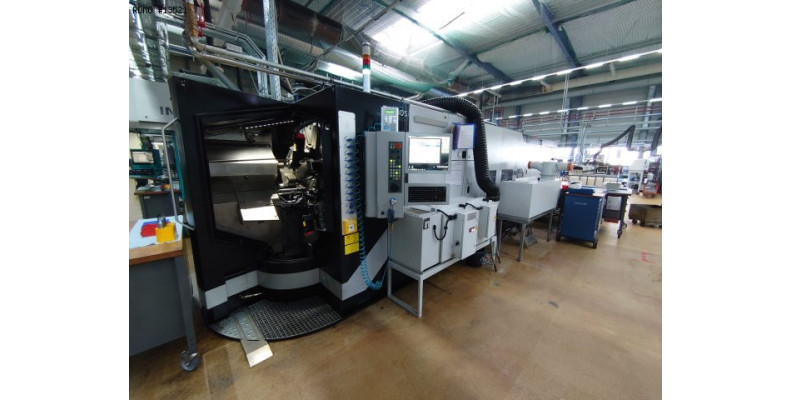

Tornos MultiSwiss 8x26 26 ejes

13521
Marca : Tornos
Modelo : MultiSwiss 8x26
Año : 2018
N° Serie : 14411
13521
Tornos MultiSwiss 8x26 26 ejes
Marca : Tornos
Modelo : MultiSwiss 8x26
Año : 2018
N° Serie : 14411

Características & Equipamiento

Características
- Number of spindles: 8 - Number of linear axes: 18 - Number of rotary axes: 8 - Max. number of tools in counter operation: 4 MAIN SPINDLES - Bar capacity: 26 [mm] - Max. workpiece length: 65 [mm 65 [mm] - Spindle speeds: 8000 [rpm] - Spindle power: 11 [kW] - Spindle stroke Z: 75 [mm] - Spindle torque: 17.30 [Nm] COUNTER SPINDLE - Spindle speeds: 8000 [rpm] - Spindle power: 11 [kW] - Counter spindle torque: 12 [Nm] - Counter spindle stroke Z: 150 [mm] POWER SUPPLY - Installed power: 140 [kW] - Voltage: 400 [V] / 50 [Hz] DIMENSIONS - Floor dimensions: 9000 x 2260 [mm] - Machine height: 2160 [mm] - Machine weight: 15,000 [kg] MACHINE HOURS - Number of working hours : 7331 [h]
Equipamiento

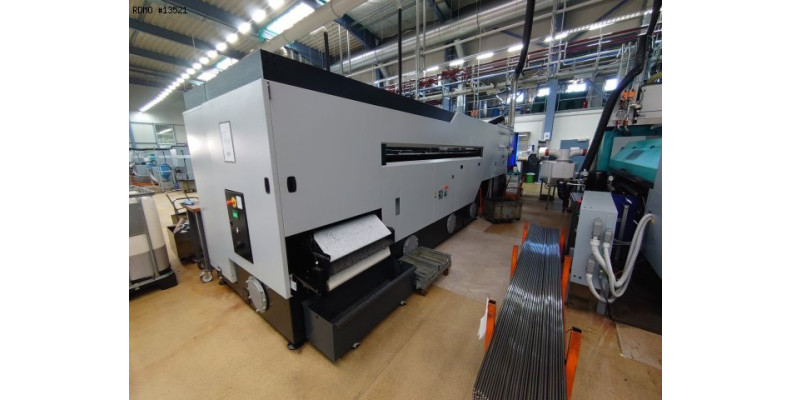

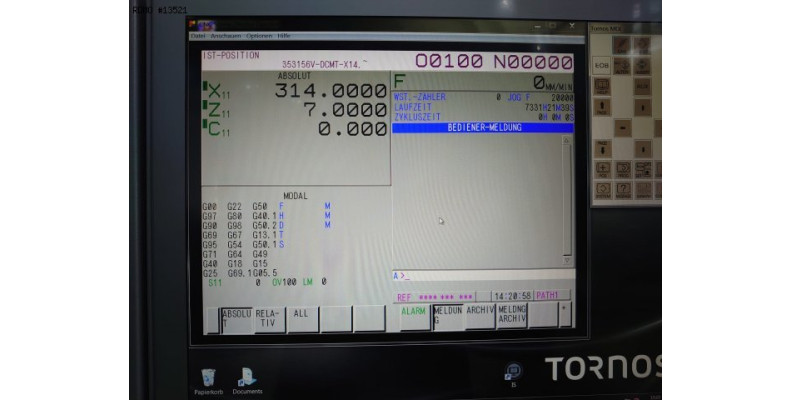

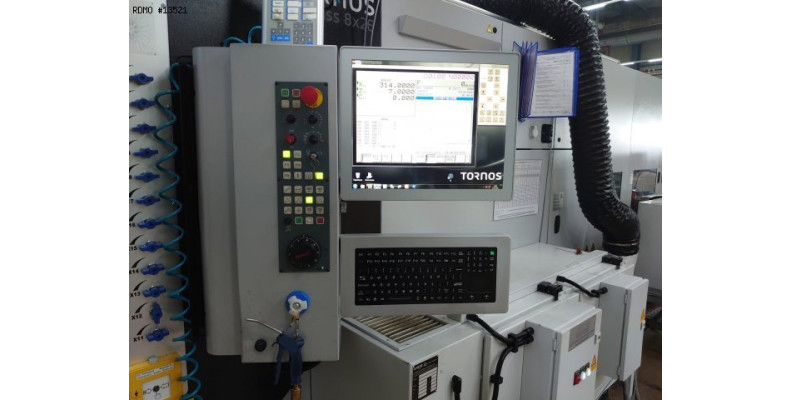

- CNC : Fanuc 30i - 3 colour status lamp - Parts catcher - Parts conveying strip - Ejection of workpiece - Mayfran chip conveyor - Coolant pump: 4 [bar] - Coolant tank * with high pressure pump: 80 [bar] * with paper filtration - Integrated bar feeder *Bar length: 3 [m] *Bar diameter: 5 - 26 [mm] - Adaptation for 4 high frequency spindles - 1 High-frequency spindle: 5000 - 60,000 [rpm] - Clamping tube Ø24 : 8 - Reduction tube Ø24 : 8
