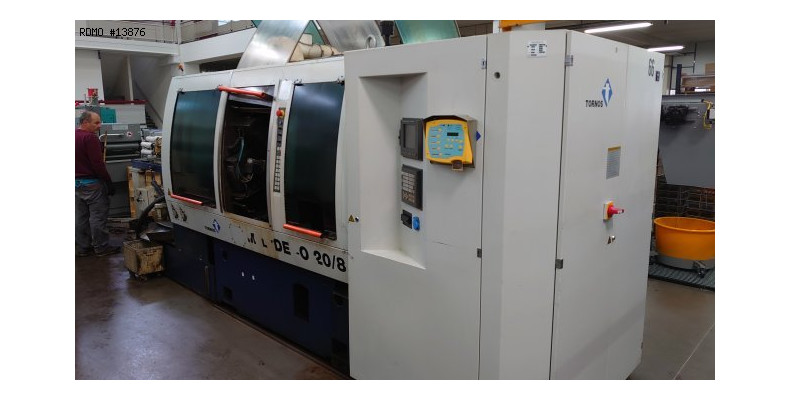

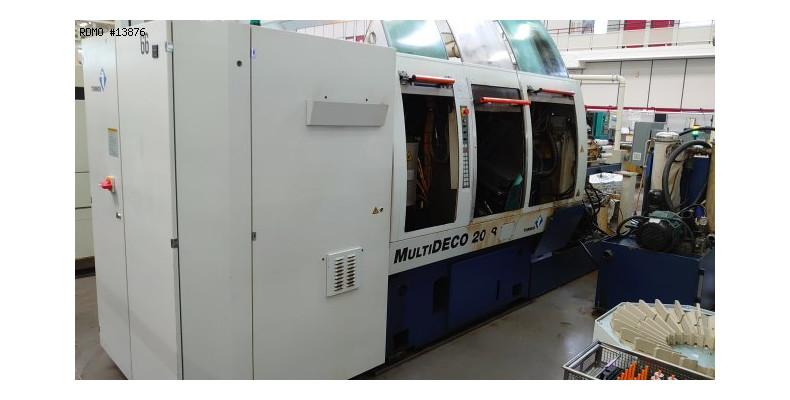

Marca : TORNOS
Modelo : MULTIDECO 20/8
Año : 2001
N° Serie : 3260
Marca : TORNOS
Modelo : MULTIDECO 20/8
Año : 2001
N° Serie : 3260

Características & Equipamiento

Características
- bar clearance : 5-20 [mm]
- maxi part length (without counter operation) : 100 [mm]
- maxi part length (with counter operation) : 80 [mm]
- spindle rotation speed : 5 000 [rpm]
- spindles maxi power : 15 [kW]
- drilling/tapping maxi power : 3.7 [kW]
- number of numerical axes : 23
- number of cross slides : 8
- counter operation slide : 1
- end units : 7
- number of sub-spindle : 1
- sub-spindle motor power : 1.1 [kW]
- dimensions : 5880 x 1400 x 1950 [mm]
- weight : 7 200 [kg]
Equipamiento

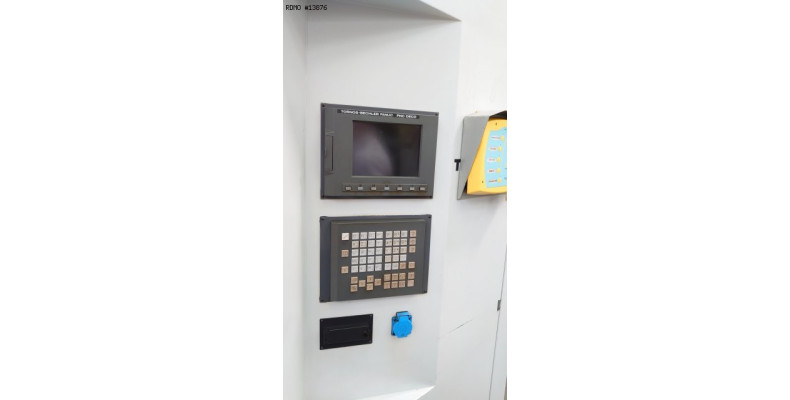

- TORNOS PNC DECO control
- HIRTH teeth drum locking
- high pressure pump
- chips conveyor
- turning tools-holders

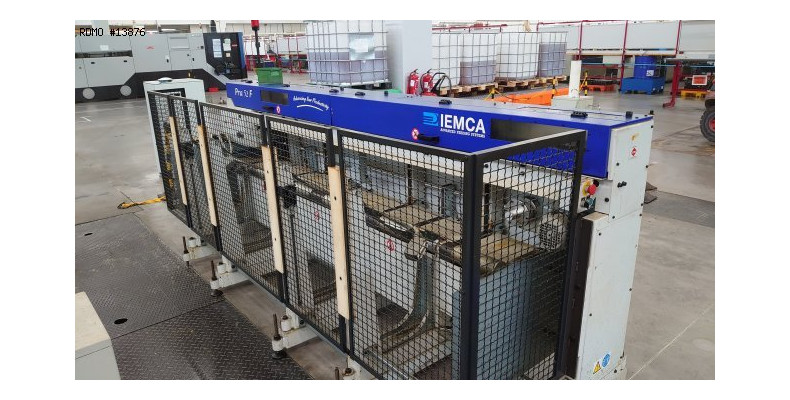

- IEMCA PRA 40/33F bar feeder
- number of hours 31600
Especificacion técnica a descargar

Descripción

Máquina herramienta de segunda mano para la venta
