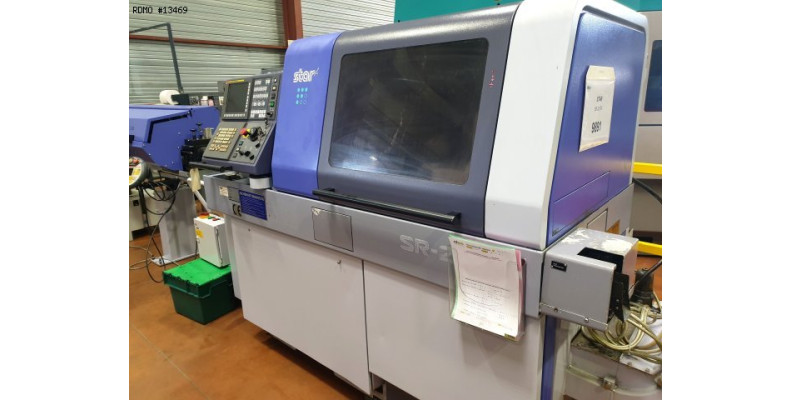

Star SR-20 RIII 7 ejes

13469
Marca : Star
Modelo : SR-20 RIII
Año : 2011
N° Serie : 1001 (084)
13469
Star SR-20 RIII 7 ejes
Marca : Star
Modelo : SR-20 RIII
Año : 2011
N° Serie : 1001 (084)

Características & Equipamiento

Características
- Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 2.2 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 END ATTACHMENT - Number of positions : 7 SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2200 x 1200 [mm] - Machine height : 1700 [mm] - Machine weight : 2200 [kg] MACHINE HOURS - Number of working hours : 16.708 [h]
Equipamiento

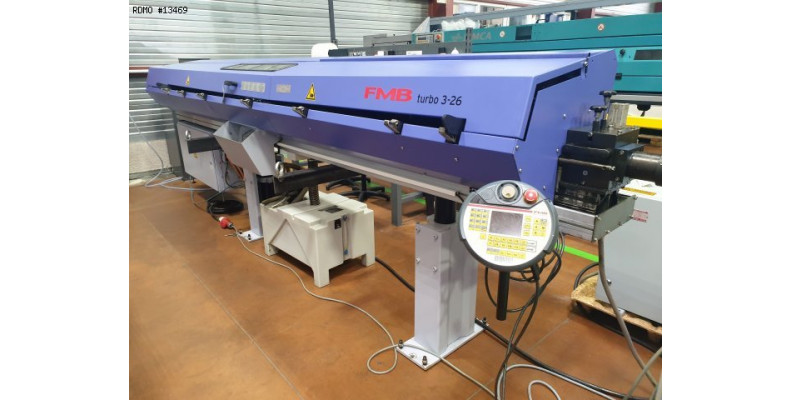

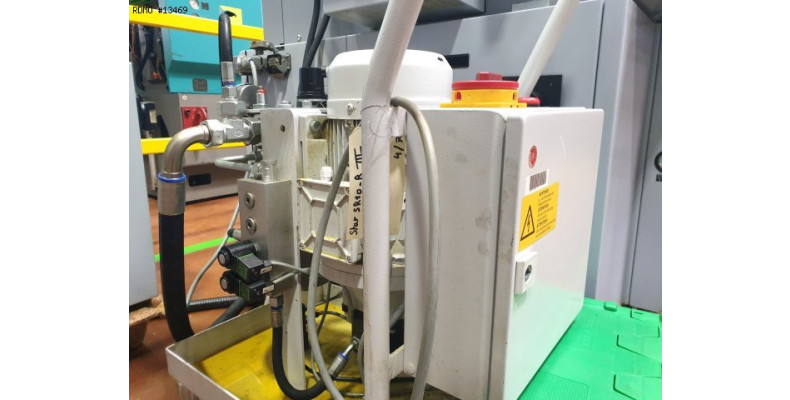

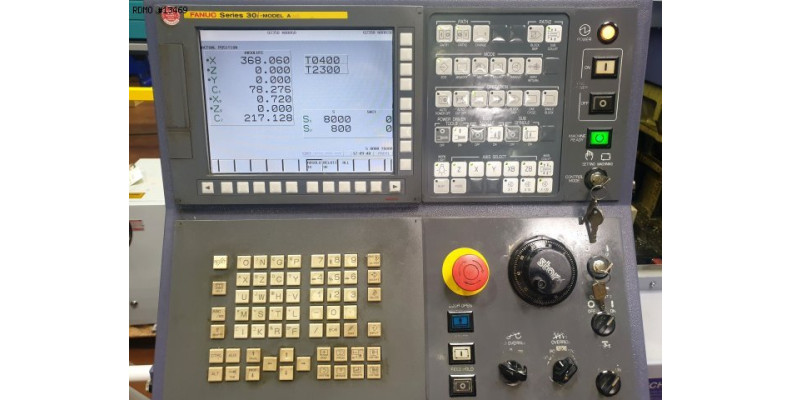

- CNC : Fanuc 30i-A - Rotating guide bush - Chips conveyor - Parts catcher - Parts conveying strip - Ejection of workpiece - Bar loader : FMB turbo 3-26 / 3200 A (2011) - Coolant tank * with high-pressure pump : 70 [bars]
