Marca : Ghiringhelli
Modelo : M100
Año : 2002
N° Serie : C632.01
Marca : Ghiringhelli
Modelo : M100
Año : 2002
N° Serie : C632.01

Características & Equipamiento

Características

- Workpiece diameter: 0.5 - 40 [mm]
- Max. plunge grinding length: 95 [mm]

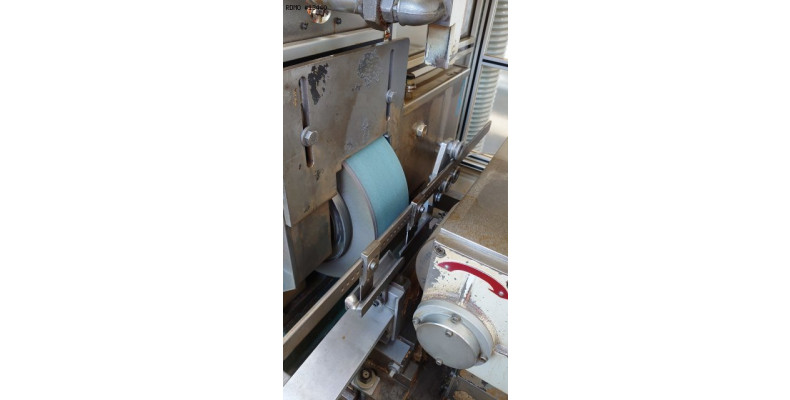

WORKING GRINDING WHEEL
- Grinding wheel diameter: 350 [mm]
- Grinding wheel width: 120 [mm]
- Peripheral speed: 50 [m/s]
- Grinding wheel speed: 2352 [rpm]
- Minimum wheel diameter: 260 [mm]
- Maximum wheel diameter: 406 [mm]
REGULATING WHEEL
- Grinding wheel width: 120 [mm]
- Wheel tilt: +/- 6 [°]
- Min. diameter of drive wheel: 150 [mm]
- Maximum diameter of drive wheel: 205 [mm]
SUPPLY
- Installed power: 21 [kW]
- Supply: 400V, 50 [Hz]
DIMENSIONS
- Floor dimensions: 3965 x 3103 [mm]
- Machine height : 2.100 [mm]
- Machine weight: 2.800 [kg]
Equipamiento

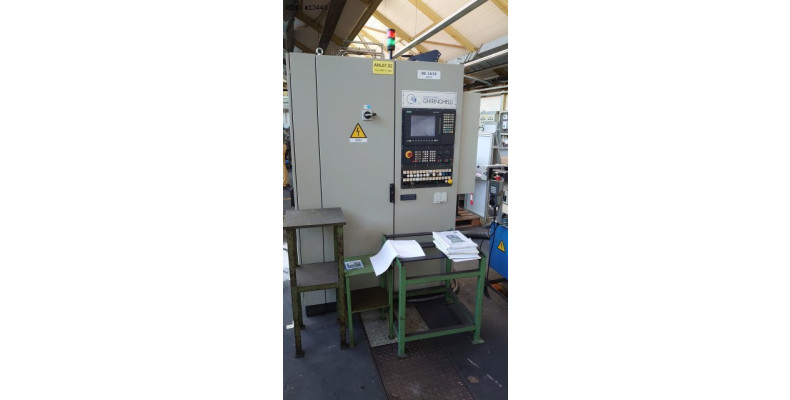

- CNC : SIEMENS SINUMERIK 840 D
Especificacion técnica a descargar

Descripción

Máquina herramienta de segunda mano para la venta
