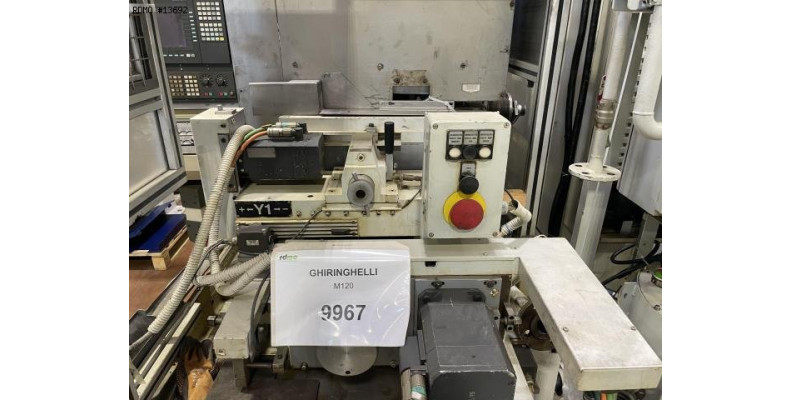

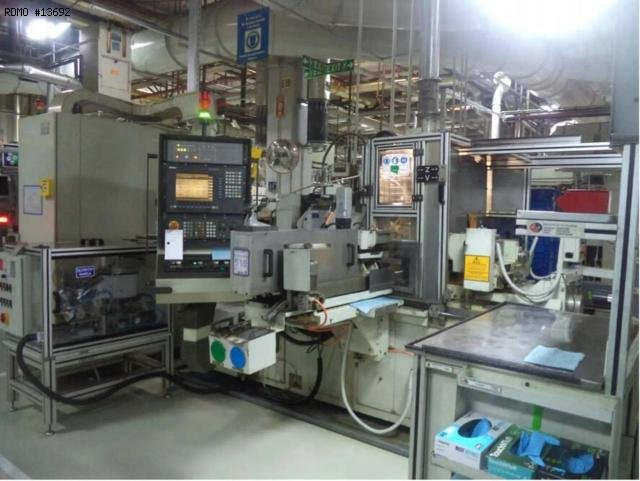

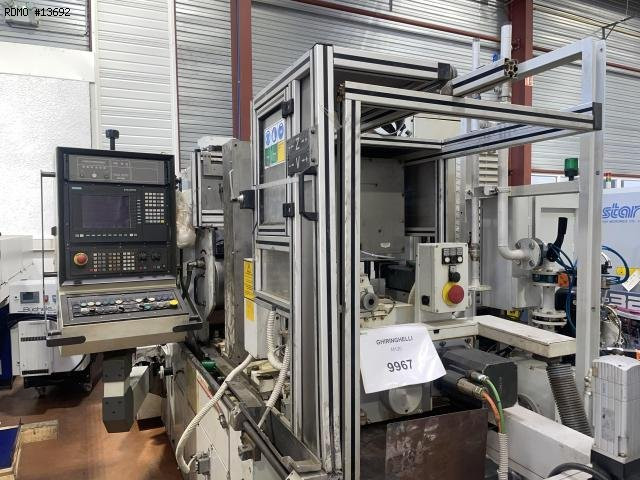

Marca : Ghiringhelli
Modelo : M120
Año : 2001
N° Serie : C609.01
Marca : Ghiringhelli
Modelo : M120
Año : 2001
N° Serie : C609.01

Características & Equipamiento

Características

- Workpiece diameter : 1 - 80 [mm]
- Max. plunge grinding length : 140 [mm]

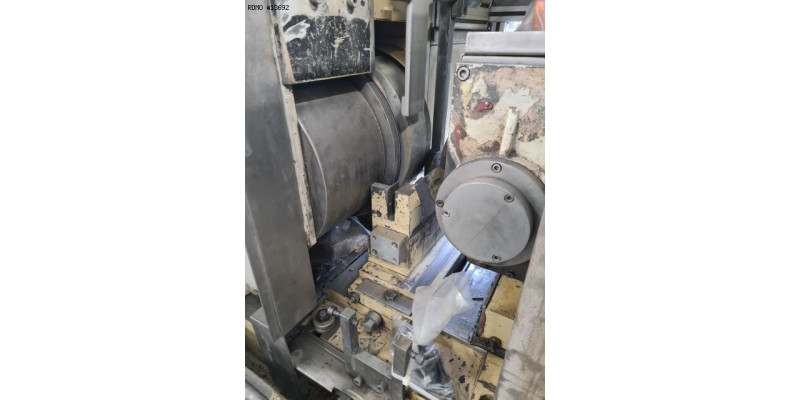

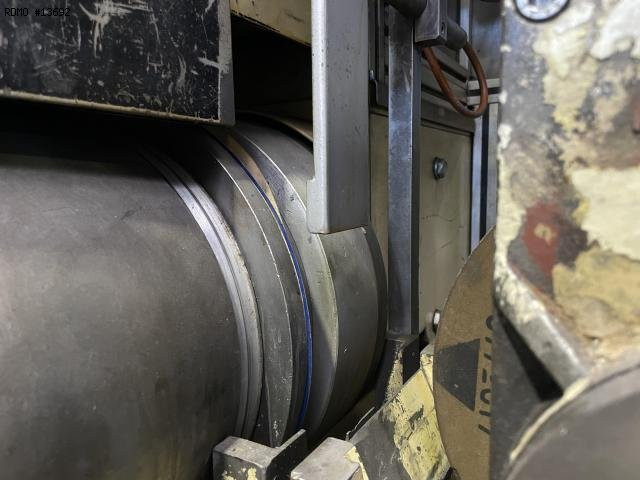

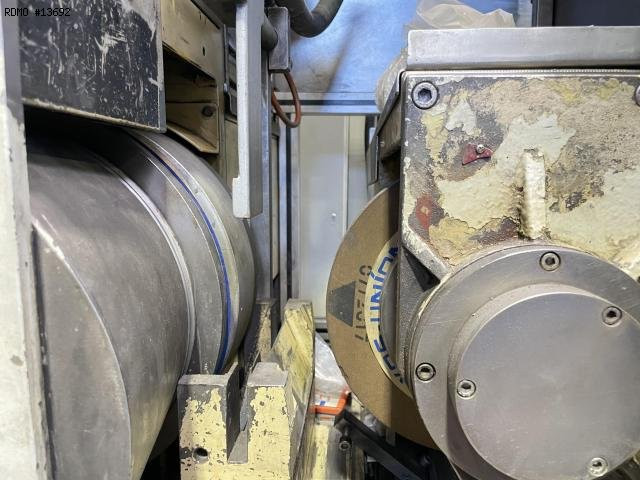

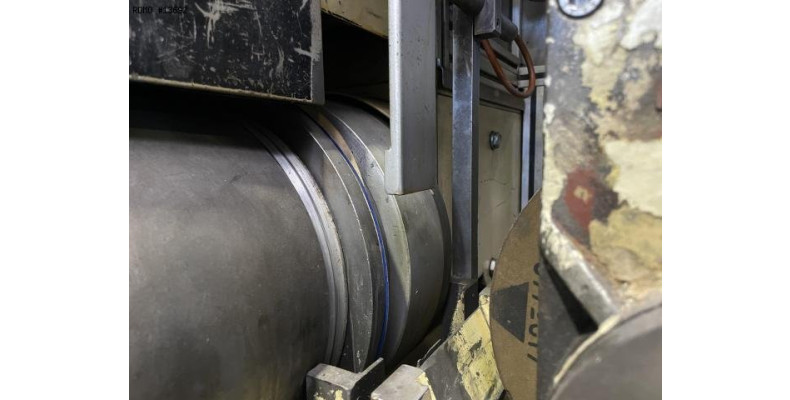

WORKING GRINDING WHEEL
- Minimum wheel diameter : 360 [mm]
- Maximum wheel diameter : 508 [mm]
- Grinding wheel width : 200 [mm]
- Peripheral speed : 45 [m/s]
- Grinding wheel speed : 1900 [rpm]

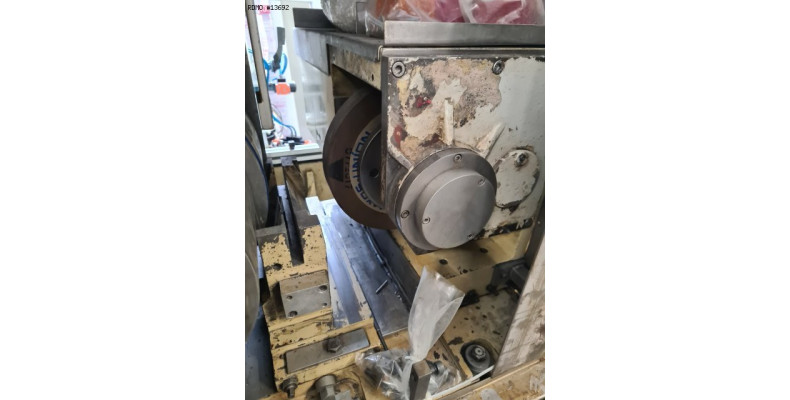

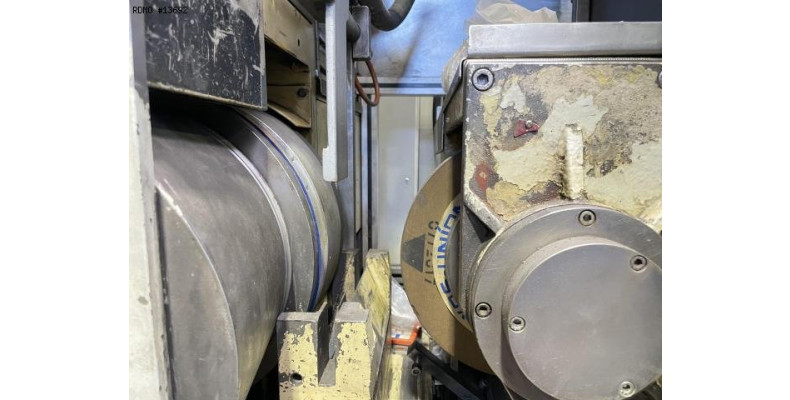

REGULATING WHEEL
- Grinding wheel width : 40 [mm]
- Wheel tilt : +/- 7 [°]
- Minimum diameter of drive wheel : 220 [mm]
- Maximum diameter of drive wheel : 305 [mm]
SUPPLY
- Installed power : 30 [kW]
- Supply : 400V, 50 [Hz]
DIMENSIONS
- Floor dimensions : 6000 x 4200 [mm]
- Machine height : 3000 [mm]
- Machine weight : 3100 [kg]
Equipamiento

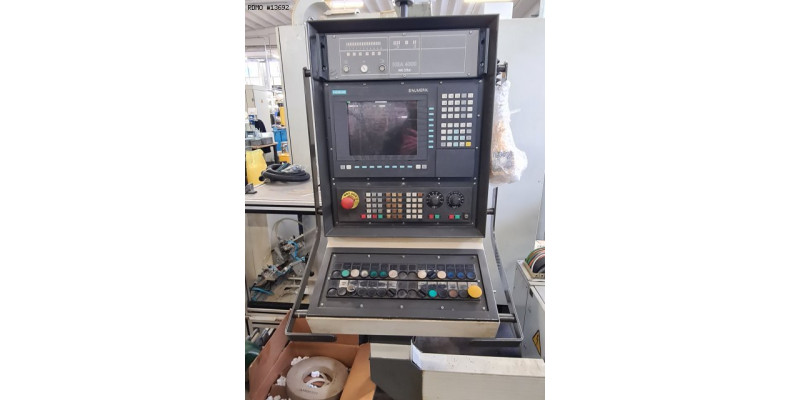

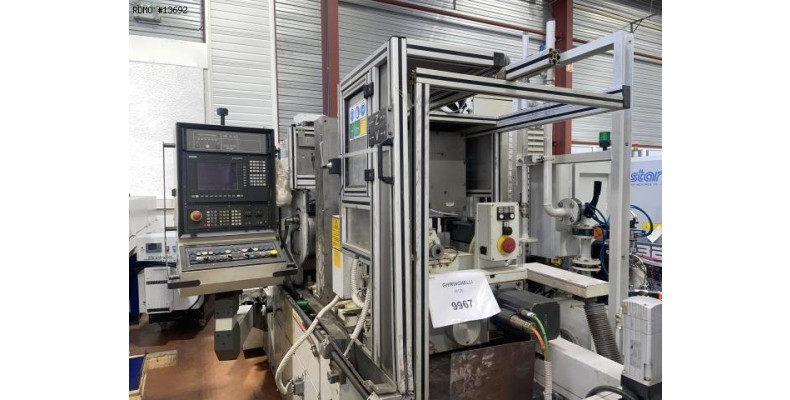

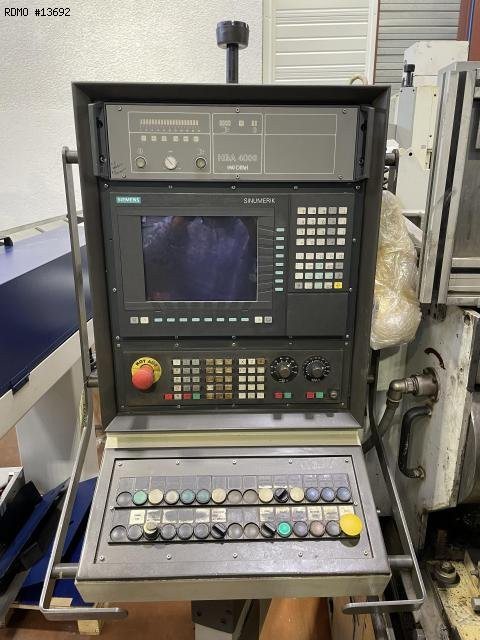

- CNC SIEMENS SINUMERIK 840 D
- Double slides for the plunge grinding wheel

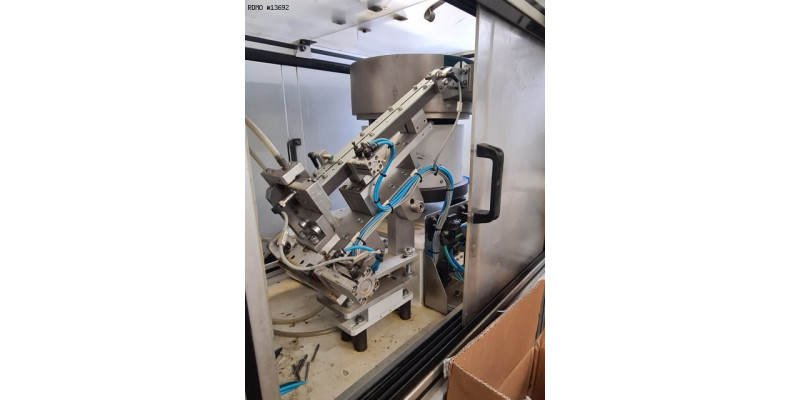

- Automatic loading through vibrating bowl
Especificacion técnica a descargar

Descripción

Máquina herramienta de segunda mano para la venta
