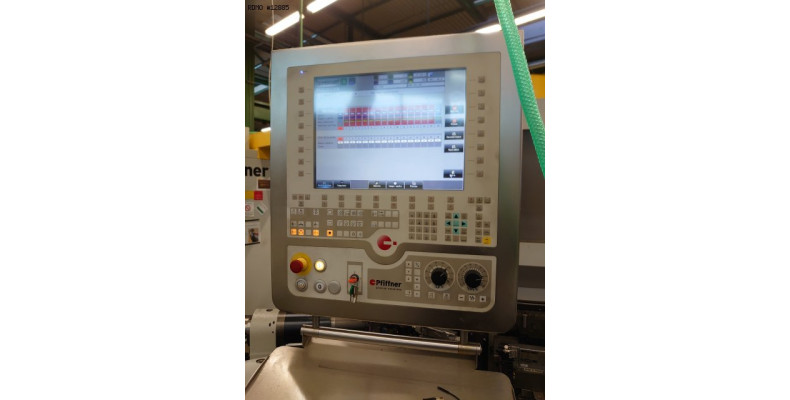

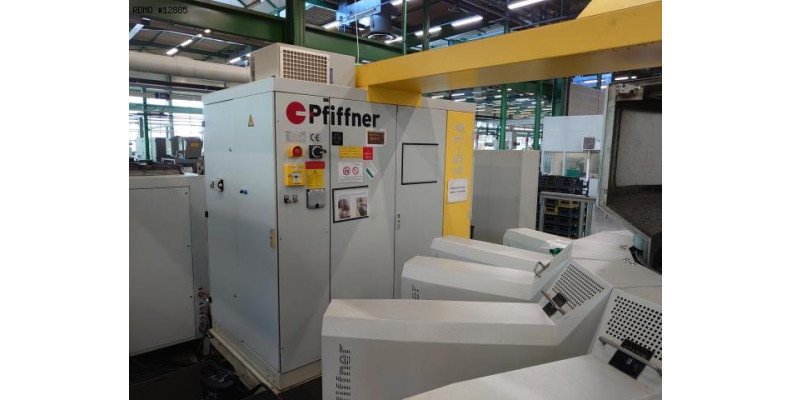

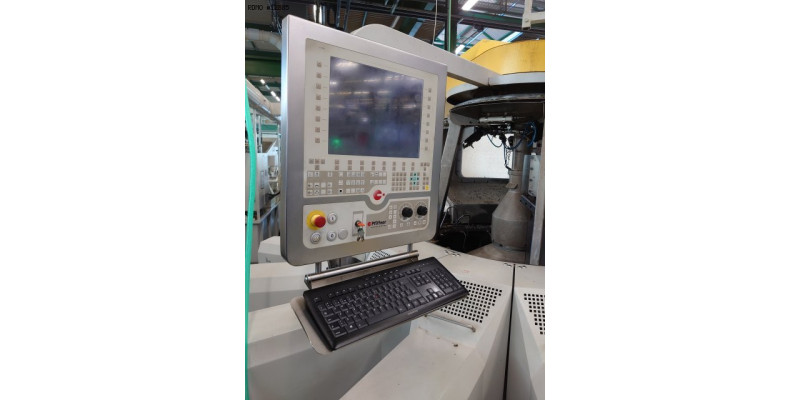

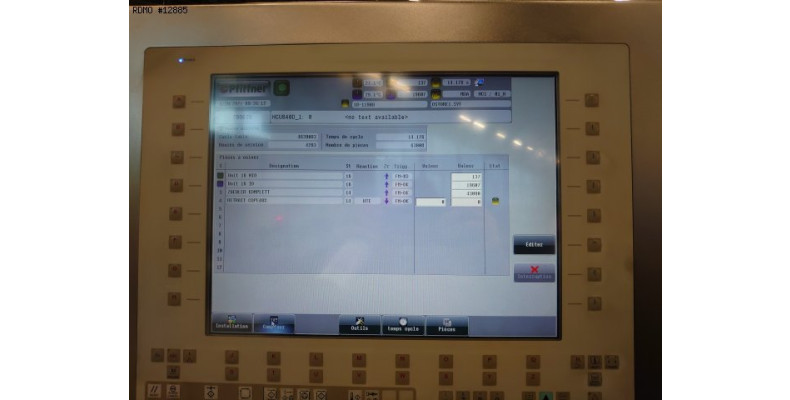

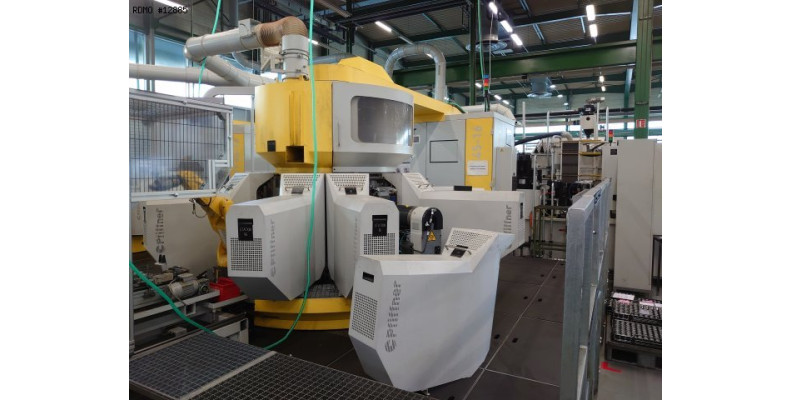

Pfiffner - Hydromat PT45/16

- Number of axes : 48
- Number of posts : 16
- Number of units :
- Number of possible horizontal units : 16
- Number of possible vertical units : 7
- Max. diameter : 45 [mm]
- Max. part width : 150 [mm]
- Basis unit GM50/150 :
* Stroke Z : 150 [mm]
* Spindle power : 5 [kW]
* Spindle speed : 0 - 8000 [Rpm]
- Slide X/Y :
* Strokes X : +/- 40 [mm]
* Strokes Y : +/- 20 [mm]
- Dimensions : 14000 x 4800 x 3000 [mm]
- Weight : 13 [t]
- Number of hours : 4283 [h]

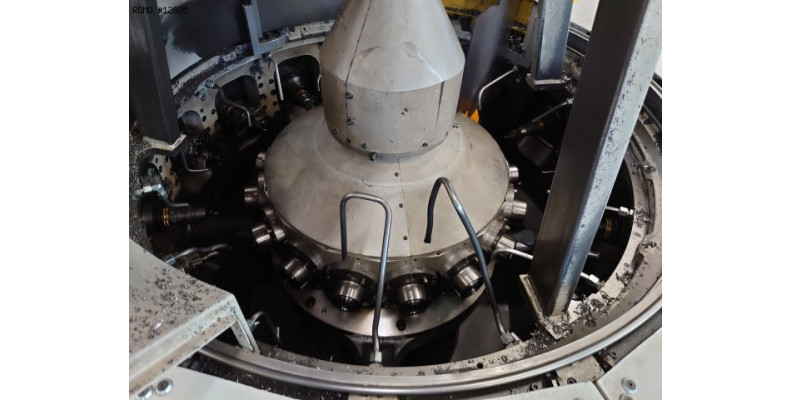

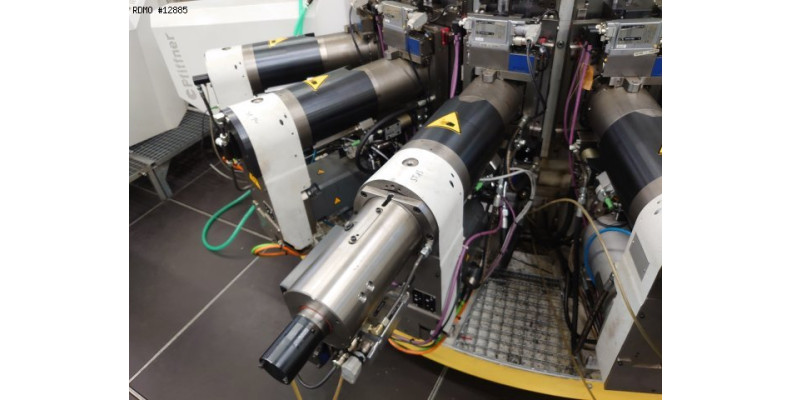

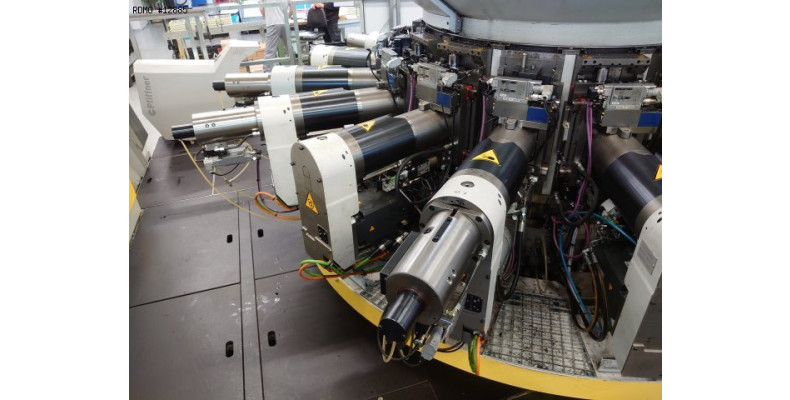

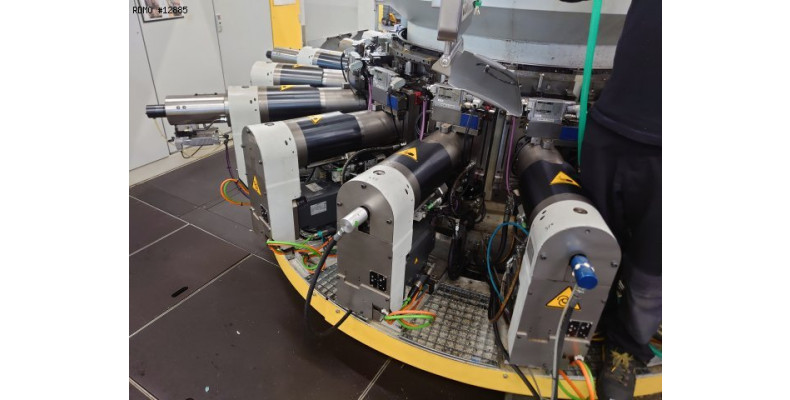

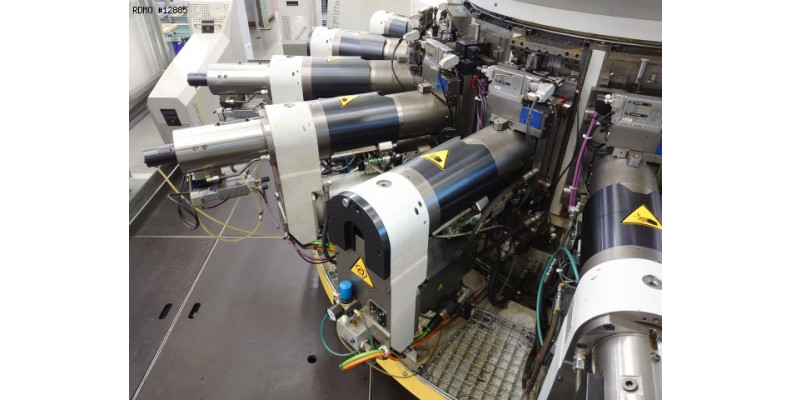

- Post 1 :
* sawing unit 52/100 3 axes
- Post 2 :
* slide 50/150 (manual adjustment) ref. 22.10.002-1
* unit 50/150 ref 22.42.001-6 (1 axis)
* coolant through spindle
- Post 3 :
* slide 50/150 (manual adjustment) ref. 22.10.002-1
* unit 50/150 ref 22.42.001-6 (1 axis)
* coolant through spindle
- Post 4 :
* slide 50/150 (manual adjustment) ref. 22.10.002-1
* unit 50/150 ref 22.42.001-6 (1 axis)
* coolant through spindle
- Post 5 :
* slide CNC 50/150 ref 22.10.001-4 (2 axes)
* unit CNC 50/150 ref 22.42.001-6 (with CNC turning function)
* coolant through spindle
- Post 6 :
* slide CNC 50/150 ref 22.10.001-4 (2 axes)
* unit CNC 50/150 ref 22.42.001-6 (with CNC turning function)
* coolant through spindle
- Post 7 :
* slide 50/150 manual adjustment ref 22.10.002.1
* unit recessing ref 22.42.041.1
- Post 8 :
* slide CNC 50/150 ref 22.10.001.4 (2001)
* unit CNC 50/150 ref 22.42.001.6 (with CNC turning function)
- Post 9 :
* slide CNC 50/150 ref 22.10.001.4
* recessing unit ref 22.42.039.2
- Post 10 :
* slide 50/150 manual adjustment ref 22.10.002.1
* recessing unit ref 22.42.039.8
- Post 11 :
* slide CNC 50/150 ref 22.10.001.4
* unit 50/150 ref 22.42.001.6 (CNC turning function)
- Post 12 :
* slide 50/150 ref 22.10.002.1
* recessing unit ref 22.42.041.1
- Post 13 :
* slide CNC 50/150 ref 22.10.001.4
* recessing unit ref 22.42.041.1
- Post 14 :
* slide CNC 50/150 ref 22.10.001.4
* unit CNC 50/150 ref 22.42.001.6 (turning function)
- Post 15 :
* slide CNC 50/150 ref 22.10.001.4
* unit CNC 50/150 ref 22.42.001.6 (turning function)
* coolant through spindle
- Post 16 :
* slide CNC 50/150 ref 22.10.001.4
* unit CNC 50/150 ref 22.42.001.6 (turning function)
* coolant through spindle

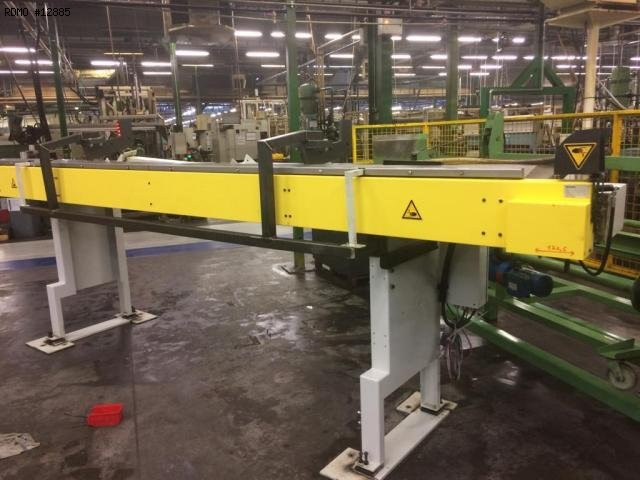

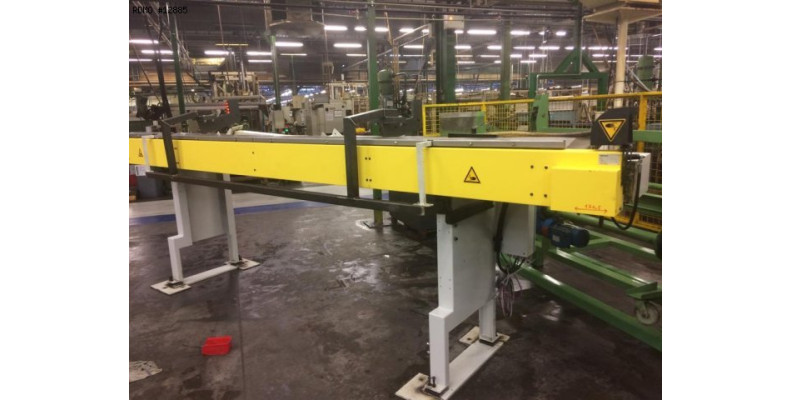

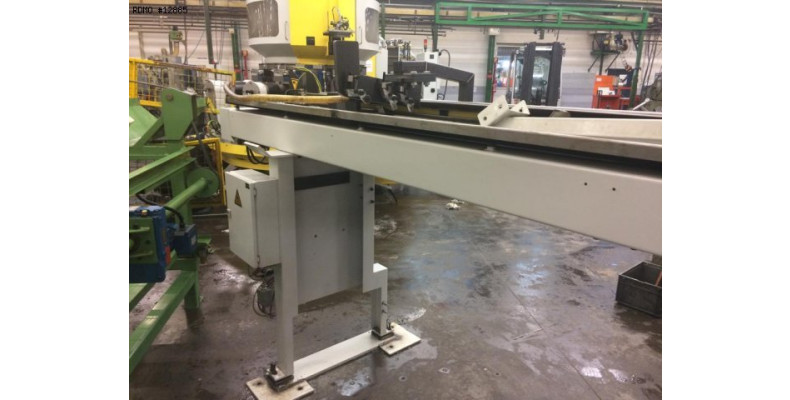

- Bar feeder length 4 m

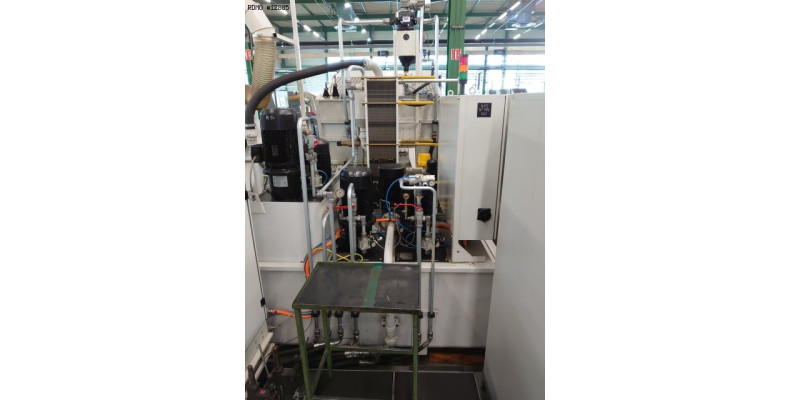

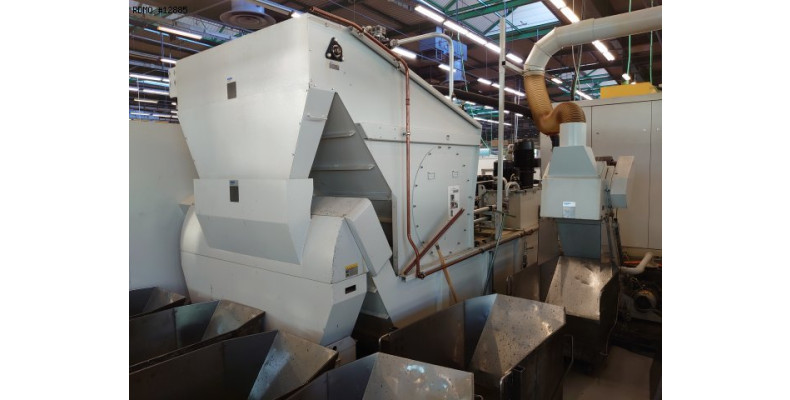

- Coolant tank KNOLL (2000 Liters)
with HP pump 60 [bars]

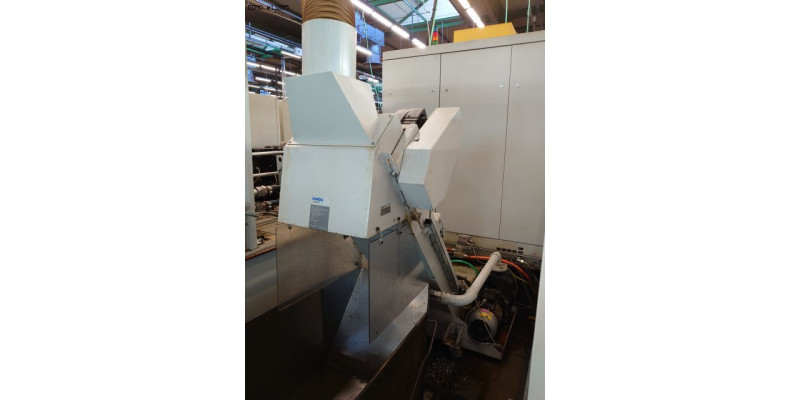

- Chips conveyor
