Marca : Famar

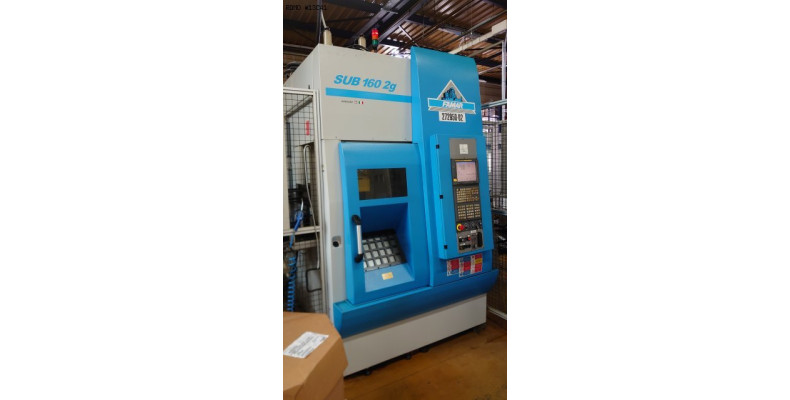

Modelo : SUB 160 2g
Año : 2012
N° Serie : 11.07.040/3
Marca : Famar
Modelo : SUB 160 2g
Año : 2012
N° Serie : 11.07.040/3

Características & Equipamiento

Características
- Max. machining diameter : 120 [mm]
- Max. part diameter : 160 [mm]
- Max. part length : 120 [mm]
- Stroke X/Z : 180/430 [mm]
- Quick movement X/Z : 60/90 [m/min]
- Spindle type : A2-5
- Rotation speed : 6000 [Rpm]
- Spindle power : 10 [kW]

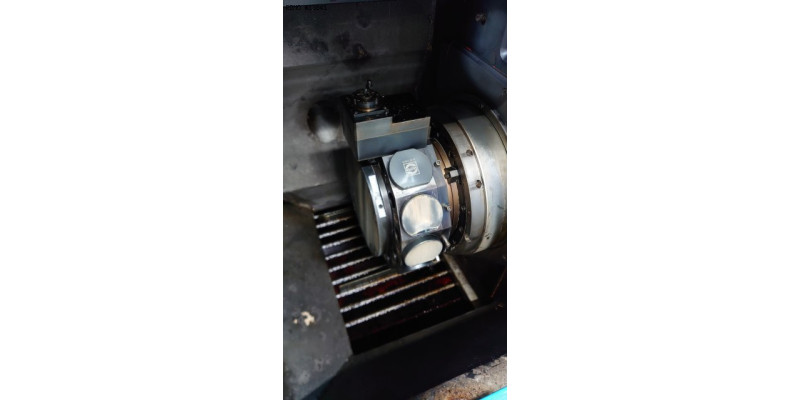

- Turret : 12 positions
- Tool type : VDI 40
- Motorized positions : 12
- Tool rotation speed : 6000 [Rpm]
- Loading / unloading time : 2 [s]
- Dimensions : 2300 x 2000 x 2700 [mm]
- Weight : 5 650 [kg]

- Operating hours : 14830 [H]
- Cutting time : 3600 [H]
Equipamiento

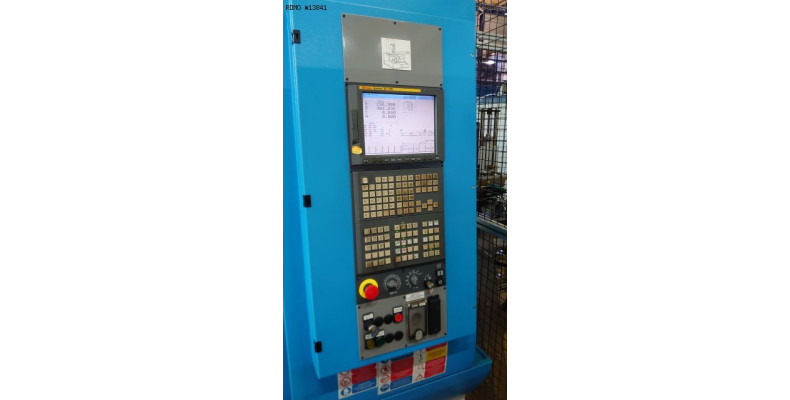

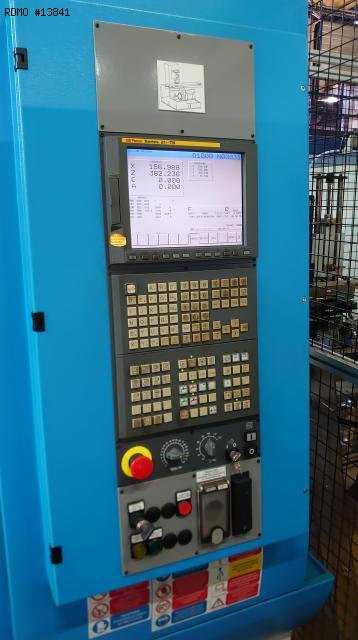

- CN FANUC 21-iTB

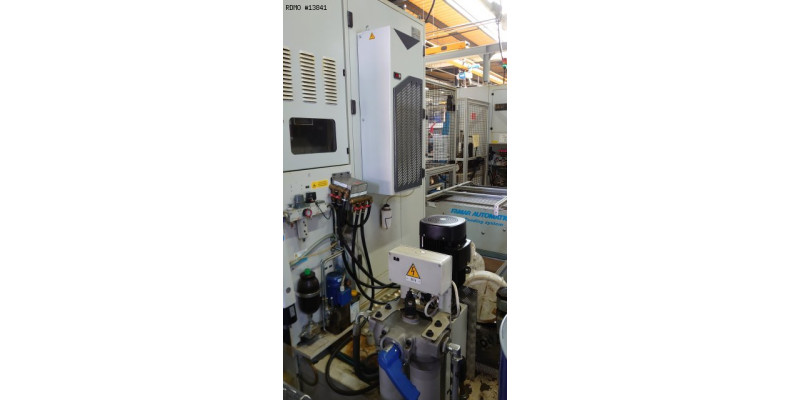

- Coolant tank with HP pump

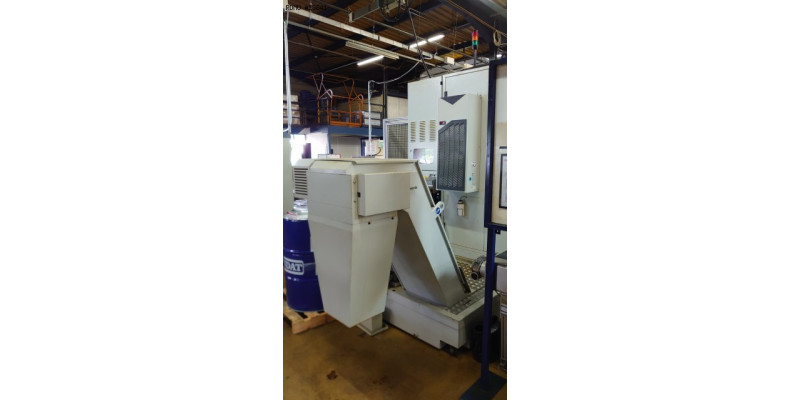

- Chip conveyor
Especificacion técnica a descargar

Descripción

Máquina herramienta de segunda mano para la venta
