Marca : Schaublin
Modelo : 110-CNC
Año : 1997
N° Serie : 337738
Marca : Schaublin
Modelo : 110-CNC
Año : 1997
N° Serie : 337738

Características & Equipamiento

Características
- Number of axes : 2 MAIN SPINDLE - Spindle nose : A2-3 - Spindle power : 5,5 [kW] - Spindle speeds : 30 - 6.000 [rpm] - Max. bar diameter : 24 (collets B32) [mm] - Max. Ø above slide : 115 [mm] - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 8 - X/Z stroke : 220/300 [mm] - Tool type : VDI20 - Distance between centers : 300 [mm] POWER SUPPLY - Supply voltage : 380 [V] WEIGHT & DIMENSIONS - Machine floor space : 1500 x 1774 [mm] - Machine height : 1977 [mm] - Machine weight : 1600 [kg]
Equipamiento

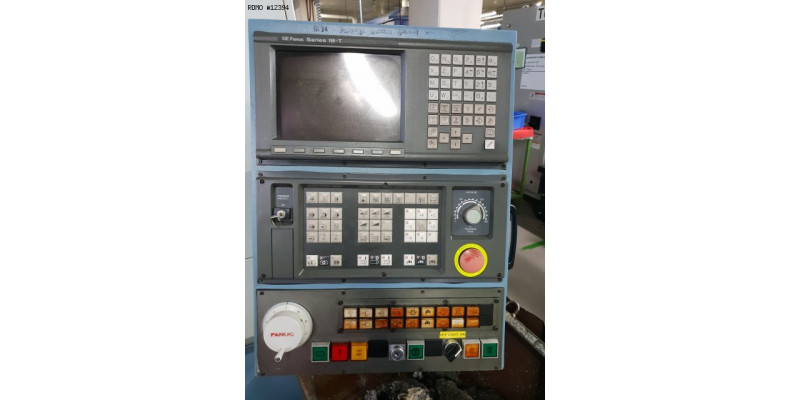

- CNC : Fanuc 18T - Coolant tank
Especificacion técnica a descargar

Descripción

Máquina herramienta de segunda mano para la venta
