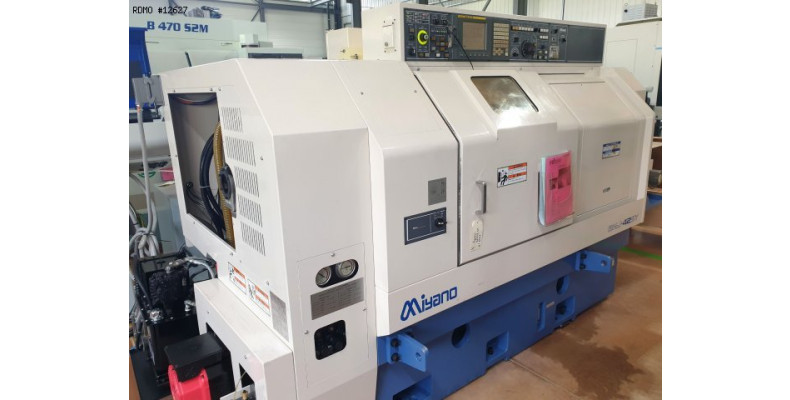

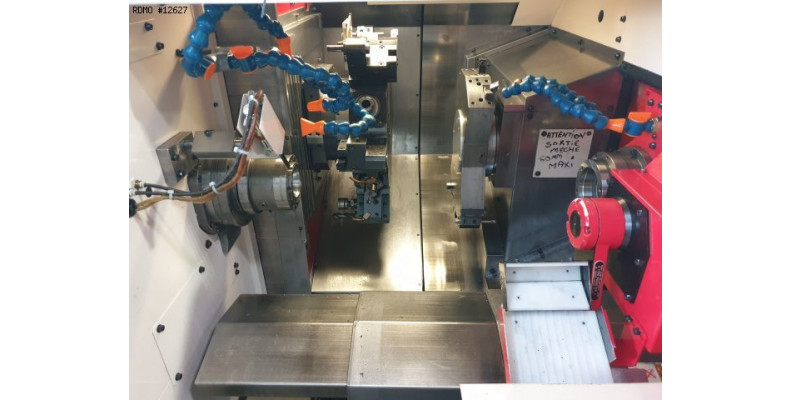

Miyano BNJ-42SY 7 ejes

12627
Marca : Miyano
Modelo : BNJ-42SY
Año : 2008
N° Serie : BN90564Y
12627
Miyano BNJ-42SY 7 ejes
Marca : Miyano
Modelo : BNJ-42SY
Año : 2008
N° Serie : BN90564Y

Características & Equipamiento

Características

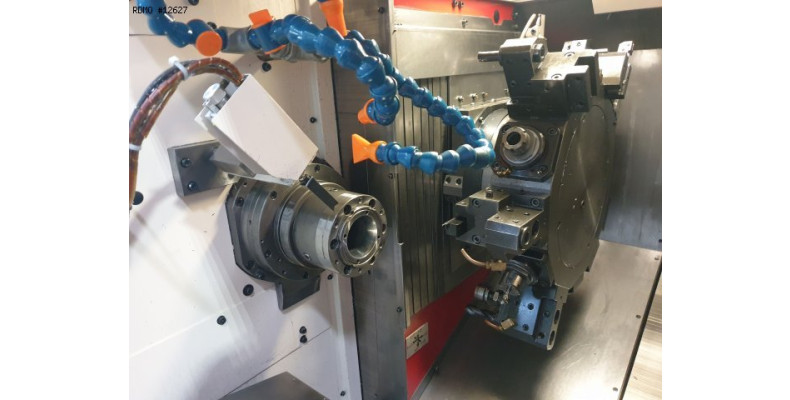

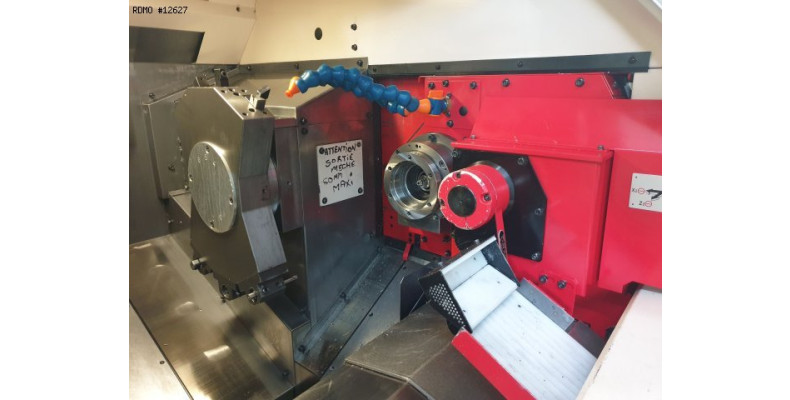

- Number of axes : 6 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle power : 11 [kW] - Spindle speeds : 67 - 5.000 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle power : 5,5 [kW] - Spindle speeds : 67 - 5.000 [rpm] - Max. collet diameter : 42 [mm] - Boring : 36 [mm] - C axis indexing precision : 0,001 [°] - Z stroke : 525 [mm] - X stroke : 70 [mm] TURRET 1 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 165 / 246 [mm] - Y stroke : +/- 40 [mm] - Tool type : support - Live tools speed : 4.000 [rpm] - Live tools power : 2,5 [kW] TURRET 2 - Number of positions : 6 - Tool type : support POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 33 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.800 x 1.300 [mm] - Machine height : 1.720 [mm] MACHINE HOURS - Number of working hours : 9.556 [h]
Equipamiento

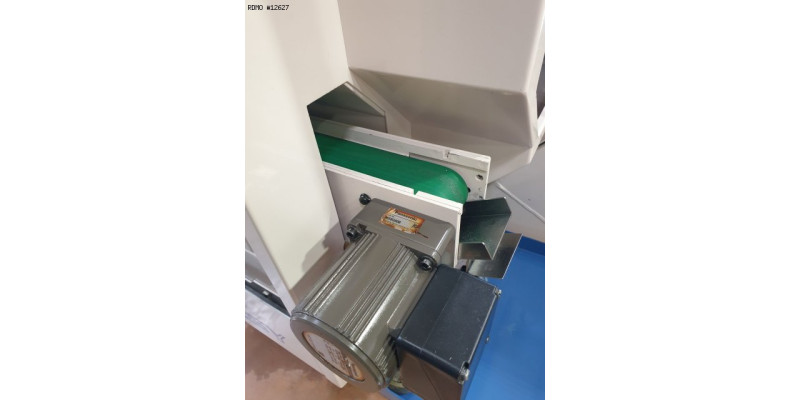

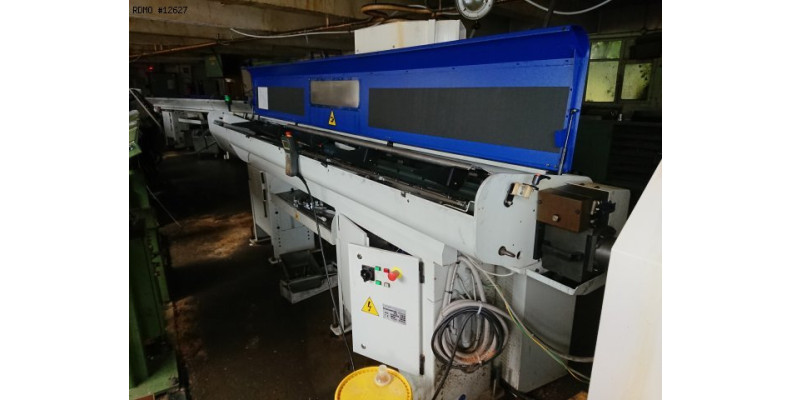

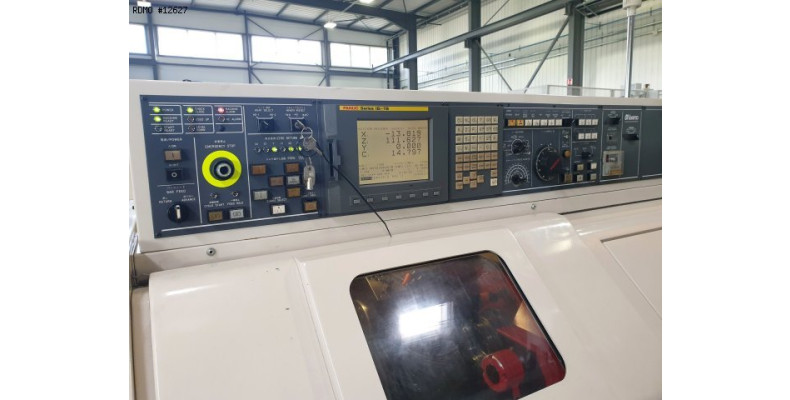

- CNC : Fanuc 18i-TB - Coolant tank - Chips conveyor - Parts conveying strip - Bar loader : IEMCA BOSS 545E - Electric transformer : 400 / 200 [V] - Collet chuck
