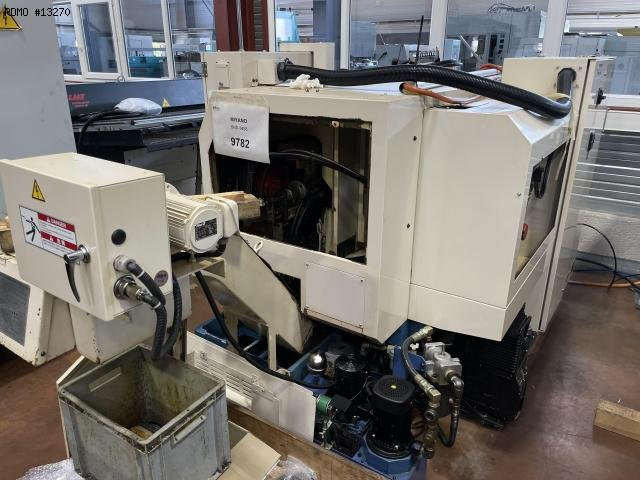

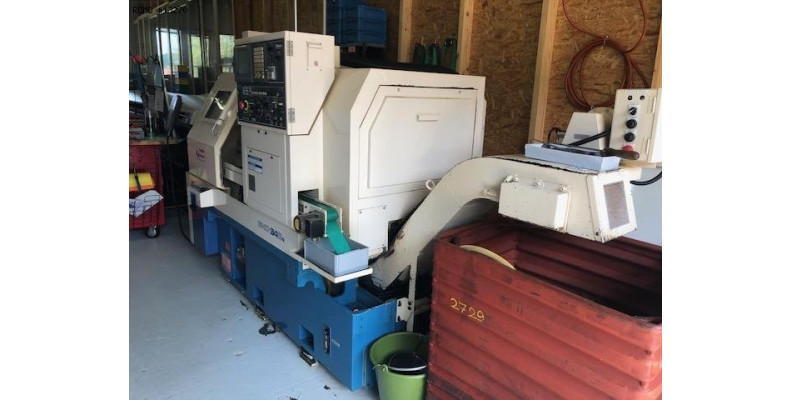

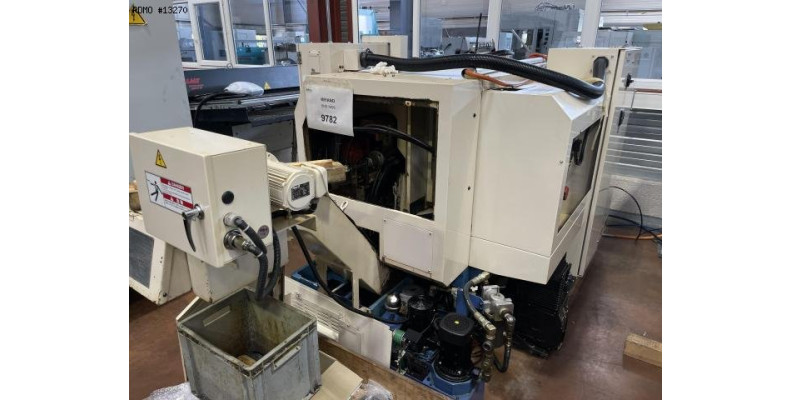

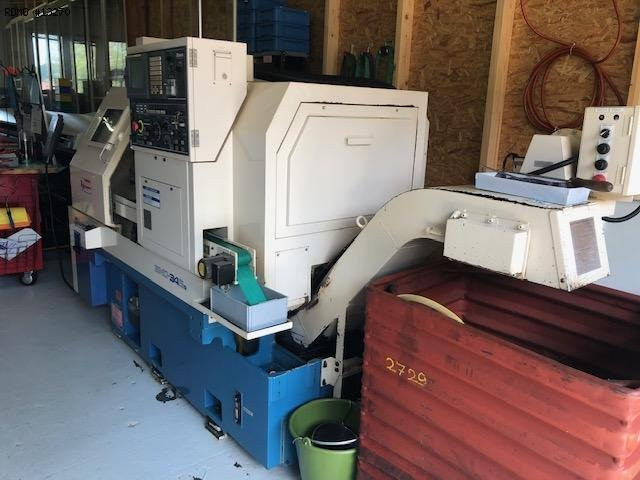

Marca : Miyano
Modelo : BND-34S5
Año : 2006.11
N° Serie : BD61167S
Marca : Miyano
Modelo : BND-34S5
Año : 2006.11
N° Serie : BD61167S

Características & Equipamiento

Características

- Number of axes : 5
- Number of spindles : 2
- Number of turrets : 1
MAIN SPINDLE
- Spindle nose : DIN 171E
- Spindle power : 7,5 [kW]
- Spindle speeds : 66 - 5.000 [rpm]
- Max. bar diameter : 34 [mm]
- Max. chuck diameter : 75 [mm]
- C axis indexing precision : 0,001 [°]

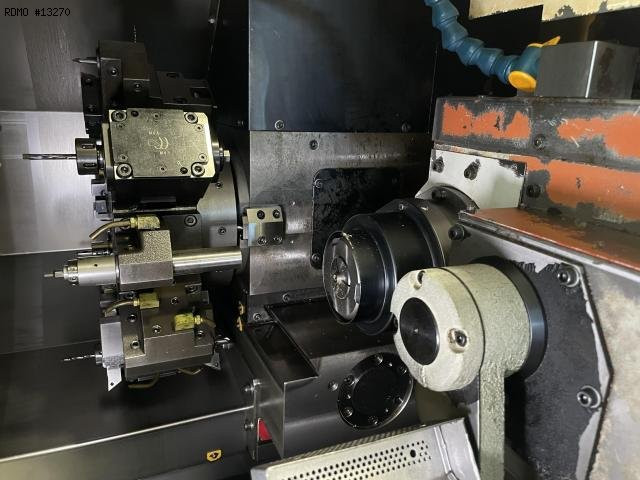

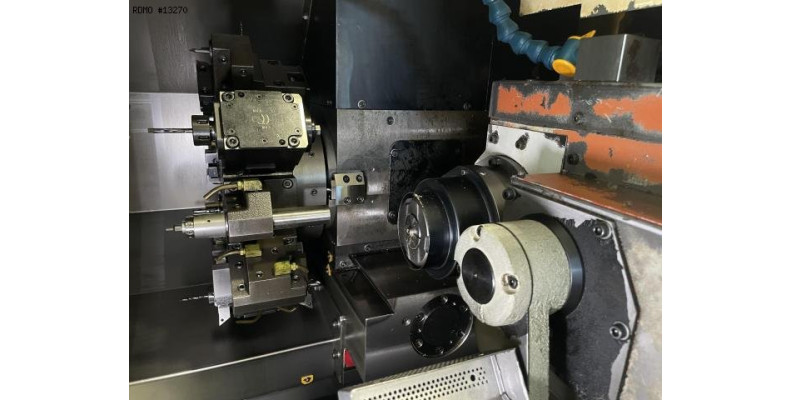

COUNTER-SPINDLE
- Spindle nose : DIN 171E
- Spindle power : 3,2 [kW]
- Spindle speeds : 170 - 5.000 [rpm]
- C axis indexing precision : 5 [°]
- Z stroke : 300 [mm]
- Rapid traverse rate : 12 [m/min]
- Spindle / counter-spindle distance : 280 [mm]

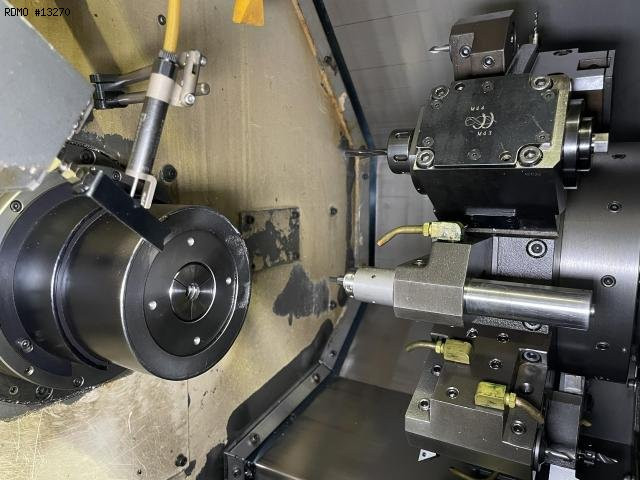

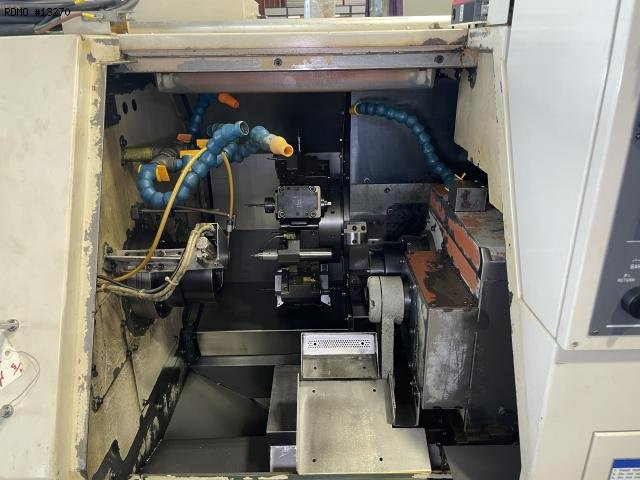

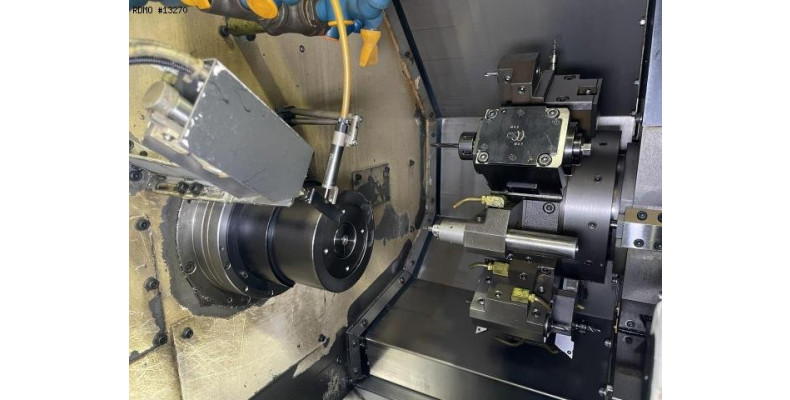

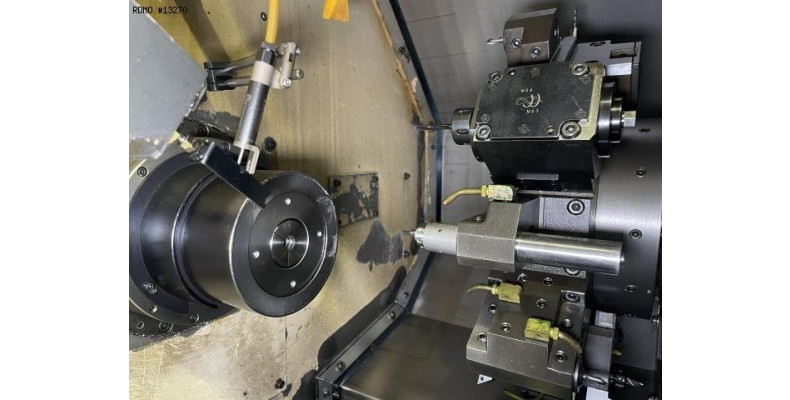

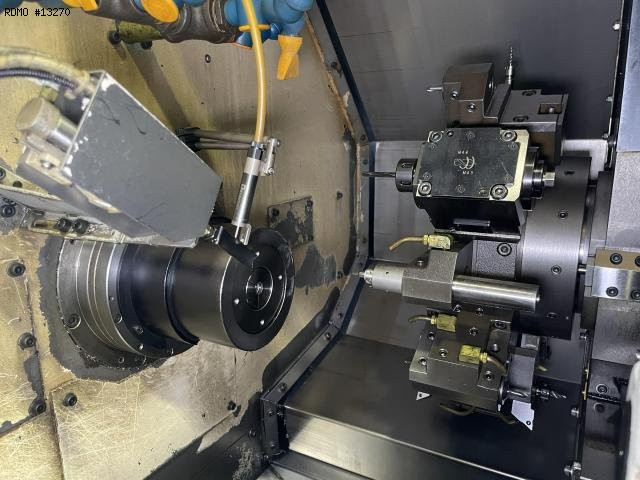

TURRET 1
- Number of positions : 12
- Number of motorized positions : 6
- X/Z stroke : 140 / 280 [mm]
- Live tools speed : 135 - 4.050 [rpm]
- Live tools power : 2,2 [kW]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 26,8 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.547 x 1.495 [mm]
- Machine weight : 3.800 [kg]
Equipamiento

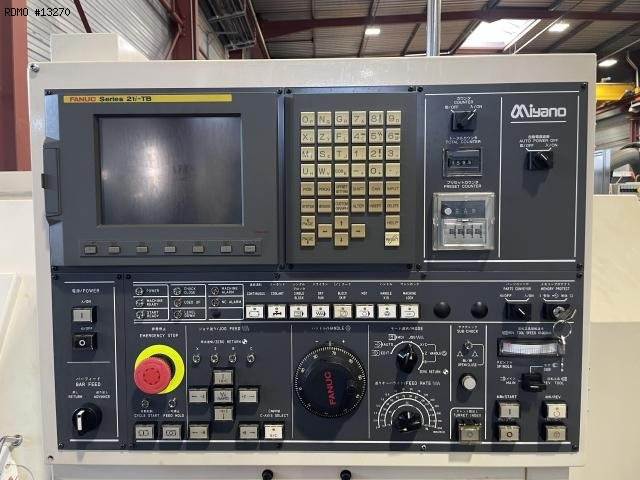

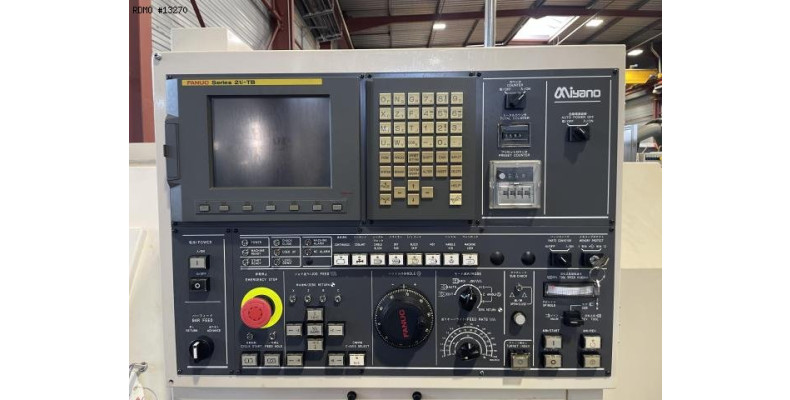

- CNC : Fanuc 21i-TB
- Coolant tank : 160 [l]
- Chips conveyor
- Tool breakage detection
- Parts catcher
- Parts conveying strip

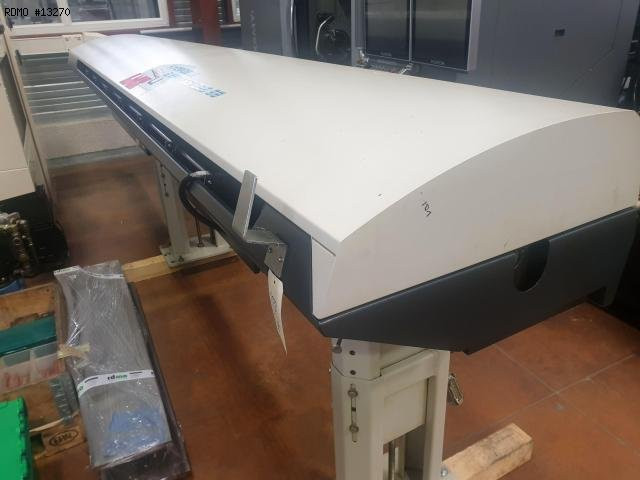

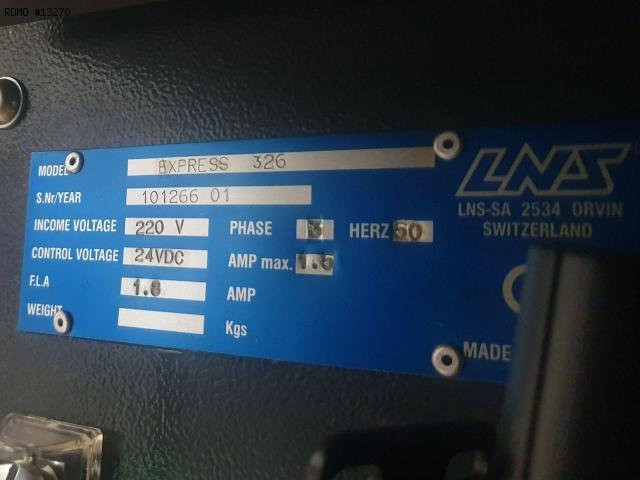

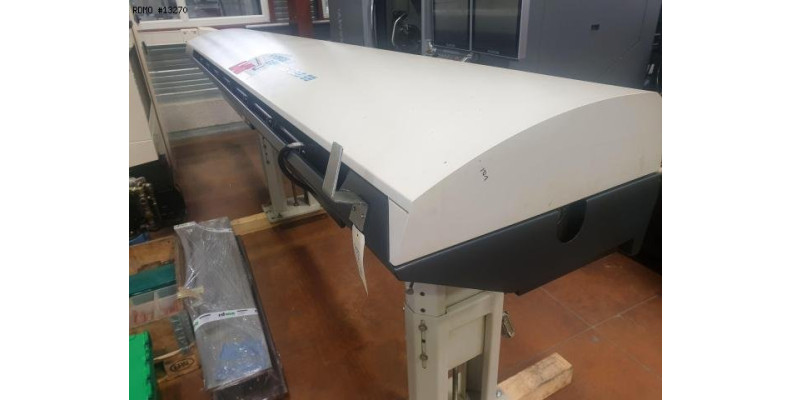

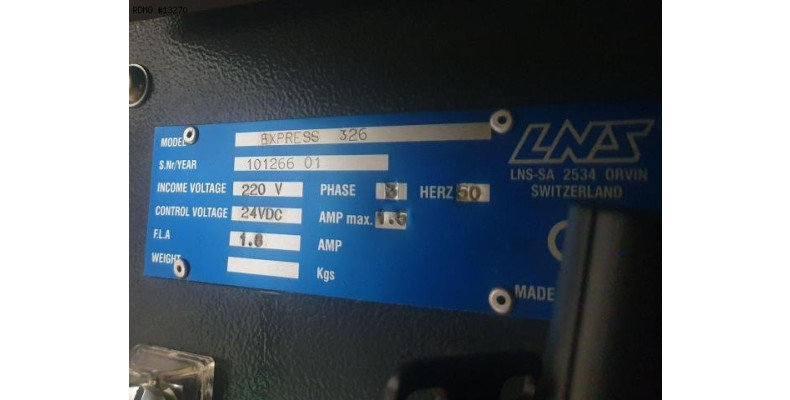

- Bar loader : LNS Express 326 (2001)
- Electric transformer : 400 / 200 [V]
- Number of turning tool holders : 1
- Number of fixed tool holders : 11
- Collet chuck : 2
Especificacion técnica a descargar

Descripción

Máquina herramienta de segunda mano para la venta
