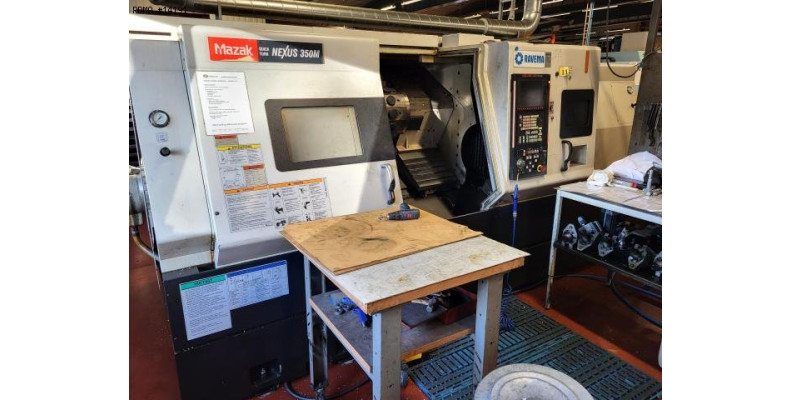

Marca : Mazak
Modelo : QTN-350M
Año : 2006
N° Serie : 184605
Marca : Mazak
Modelo : QTN-350M
Año : 2006
N° Serie : 184605

Características & Equipamiento

Características
- Number of axes : 3 MAIN SPINDLE - Spindle power : 30 [kW] - Spindle speeds : 3.300 [rpm] - Max. bar diameter : 102 [mm] - Max. turning diameter : 420 [mm] - Max. diameter on bench : 750 [mm] - Spindle nose : A2-8 - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 260 / 1.605 [mm] - Tool type : VDI 50 - Live tools speed : 25 - 4.000 [rpm] - Live tools power : 8 [kW] TAILSTOCK - Tailstock type : Numeric - Type of cone : MT4 - Distance between centers : 1.500 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 55 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 4.400 x 2.130 [mm] - Machine height : 2.000 [mm] - Machine weight : 7.500 [kg] MACHINE HOURS - Number of hours under power : 31.838 [h]
Equipamiento
- CNC : Mazatrol 640T NEXUS - Interface : PCMCIA / RS232 - Coolant tank : 350 [l] - Chips conveyor - Tool probe - Rest : SMW SLU-3.1-MS Ø20-165 - Number of turning tool holders : 6 - Number of fixed tool holders : 16 - Chuck 3 jaws : KITAGAWA B-212 15X
Especificacion técnica a descargar

Descripción

Máquina herramienta de segunda mano para la venta
