Mazak QTN-250 1000L 2 ejes

14092
Marca : Mazak
Modelo : QTN-250 1000L
Año : 2005
N° Serie : 179653
14092
Mazak QTN-250 1000L 2 ejes
Marca : Mazak
Modelo : QTN-250 1000L
Año : 2005
N° Serie : 179653

Características & Equipamiento

Características

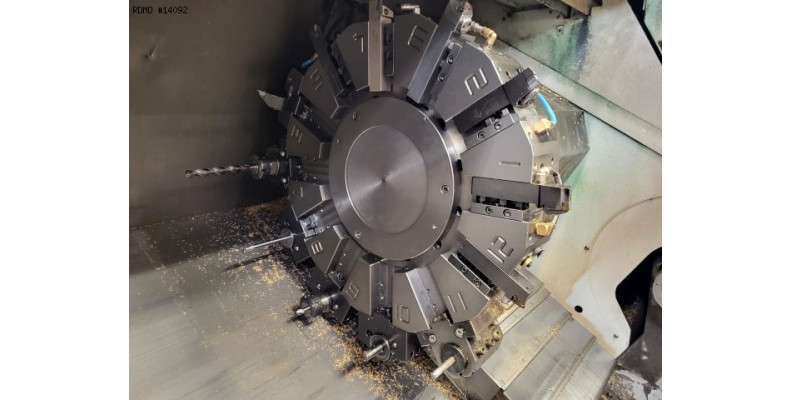

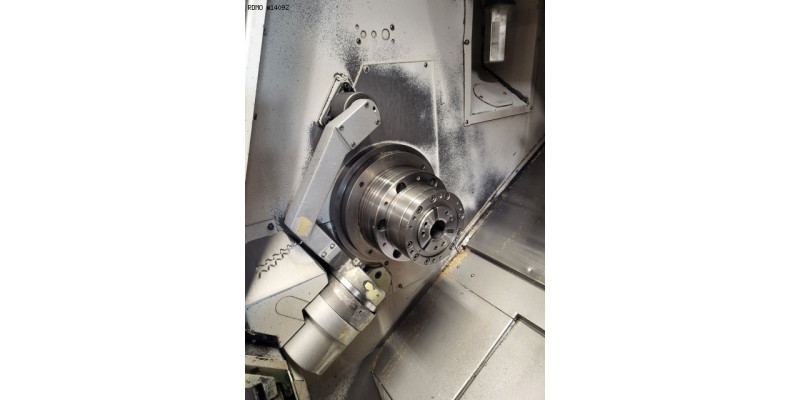

- Number of axes : 2 MAIN SPINDLE - Spindle nose : A2-8 - Spindle power : 26 [kW] - Spindle speeds : 40 - 4.000 [rpm] - Max. turning diameter : 350 [mm] - Max. diameter on bench : 610 [mm] - Max. chuck diameter : 264 [mm] - Max. bar diameter : 80 [mm] TURRET - Number of positions : 12 - X/Z stroke : 190 / 1.000 [mm] TAILSTOCK - Tailstock type : Numeric * Type of cone : MT4 - Counter-spindle stroke : 1.075 [mm] - Distance between centers : 1.000 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 50 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.550 x 1.908 [mm] - Machine height : 1870 [mm] - Machine weight : 5.200 [kg] MACHINE HOURS - Number of working hours : 35.103 [h]
Equipamiento

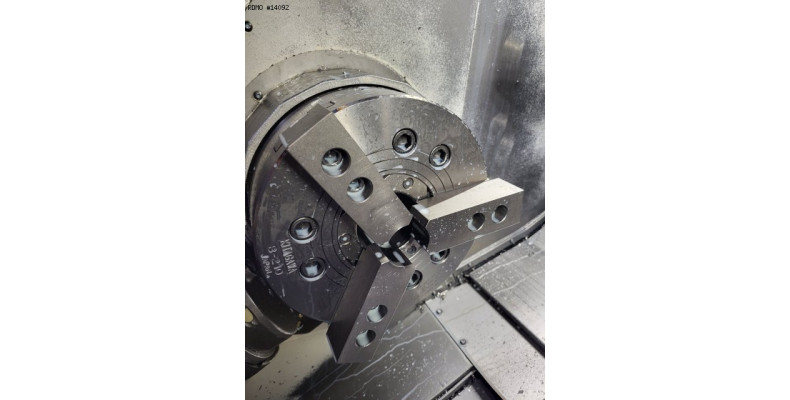

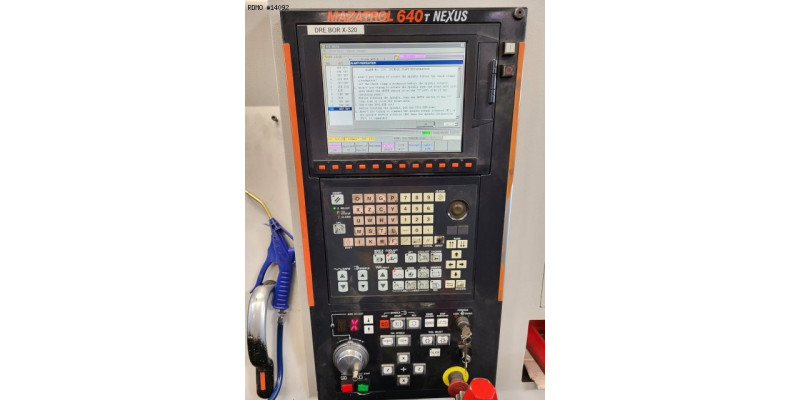

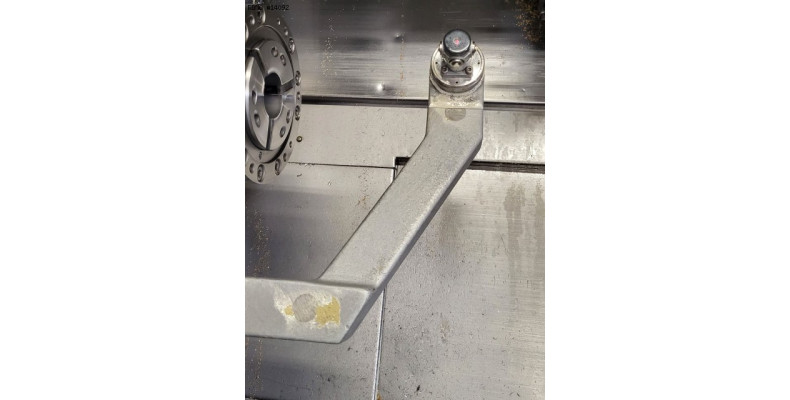

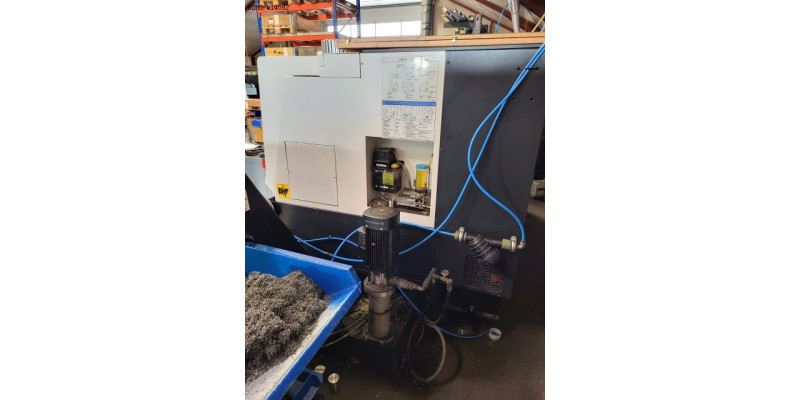

- CNC : Mazatrol 640T NEXUS - Interface : Ethernet / RS232 / PCMCIA - Coolant tank * with high-pressure pump : 25 [bars] - Chips conveyor - Tool probe - Number of fixed tool holders : 6 - Chuck 3 jaws : KITAGAWA B-210
