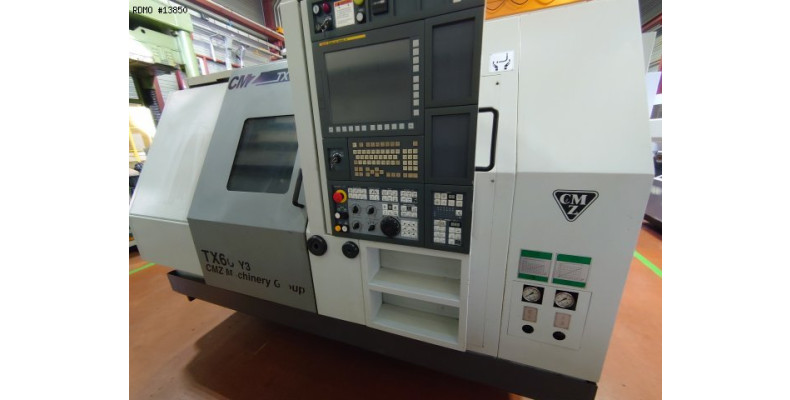

CMZ TX66 Y3 12 ejes

13850
Marca : CMZ
Modelo : TX66 Y3
Año : 2012
N° Serie : 81
13850
CMZ TX66 Y3 12 ejes
Marca : CMZ
Modelo : TX66 Y3
Año : 2012
N° Serie : 81

Características & Equipamiento

Características
- Number of axes : 12
- Number of spindles : 2
- Number of turrets : 3
MAIN SPINDLE
- Spindle nose : A2-8
- Spindle power : 15 [kW]
- Spindle speeds : 4.000 [rpm]
- Max. bar diameter : 66 [mm]
- Max. turning diameter : 255 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-6
- Spindle power : 7,5 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 52 [mm]
- C axis indexing precision : 0,001 [°]
- Z stroke : 635 [mm]
UPPER LEFT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 190 / 300 [mm]
- Y stroke : ± 40 [mm]
- Live tools speed : 6.000 [rpm]
- Live tools power : 18 [kW]
UPPER RIGHT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 190 / 635 [mm]
- Y stroke : ± 40 [mm]
- Live tools speed : 6.000 [rpm]
- Live tools power : 18 [kW]
LOWER LEFT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 190 / 500 [mm]
- Y stroke : ± 40 [mm]
- Live tools speed : 6.000 [rpm]
- Live tools power : 18 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 65 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2.840 x 2.190 [mm]
- Machine height : 2.030 [mm]
- Machine weight : 9.600 [kg]
MACHINE HOURS
- Number of working hours : 12.221 [h]
Equipamiento
- CNC : FANUC 31i-Model B
- 3 colors status lamp
- Coolant tank : KNOLL KF200-700 (2017)
* with high-pressure pump : 9 [bars]
* With washing gun
* Coolant through spindle : through counter-spindle (air & coolant)
- Chips conveyor : Right
- Parts catcher : Type G
- Parts conveying strip

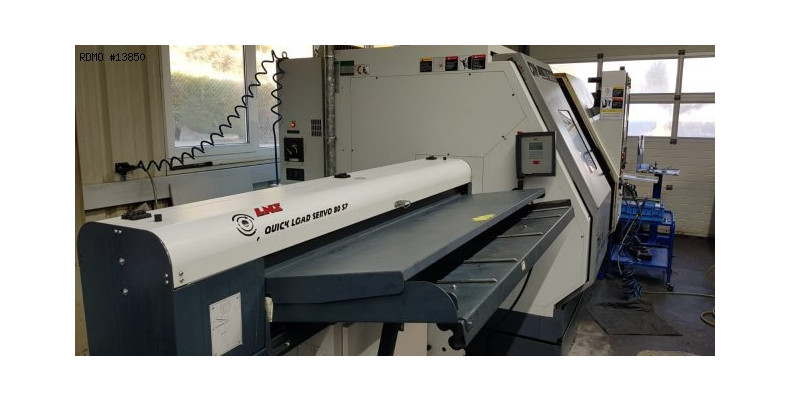

- Bar loader : LNS QUICK LOAD SERVO 80 S2 (2014)
- Number of fixed tool holders : 8
- Number of turning tool holders : 4
- Collet chuck : 2
- Collets set
