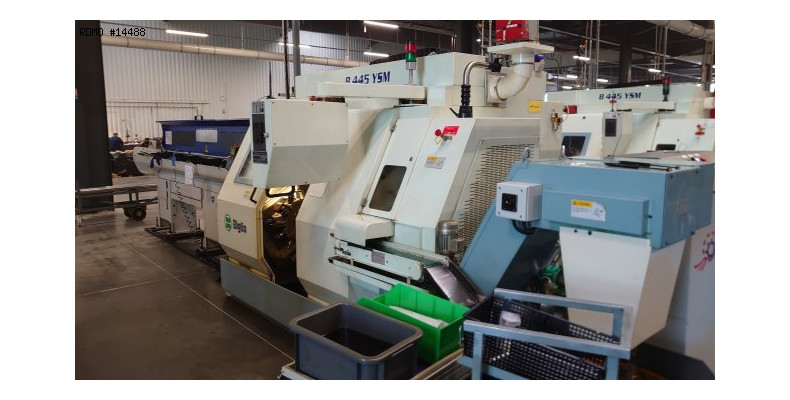

BIGLIA B445/YSM 7 ejes

14488
Marca : BIGLIA
Modelo : B445/YSM
Año : 2004
N° Serie : 7135
14488
BIGLIA B445/YSM 7 ejes
Marca : BIGLIA
Modelo : B445/YSM
Año : 2004
N° Serie : 7135

Características & Equipamiento

Características
- Number of axes : 7
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 15 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 45 [mm]
* Max. turning diameter : 200 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 45 [mm]
- Max. turning diameter : 200 [mm]
- C axis indexing precision : 0.001 [°]
- X/Z stroke : 115 / 420 [mm]
- Spindle / counter-spindle distance : 560 [mm]

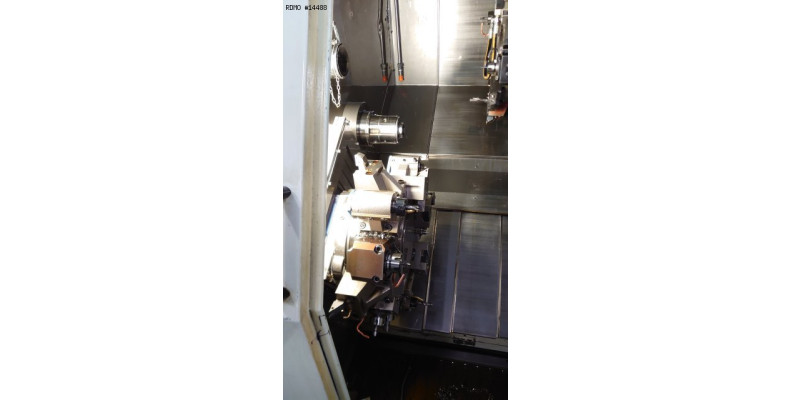

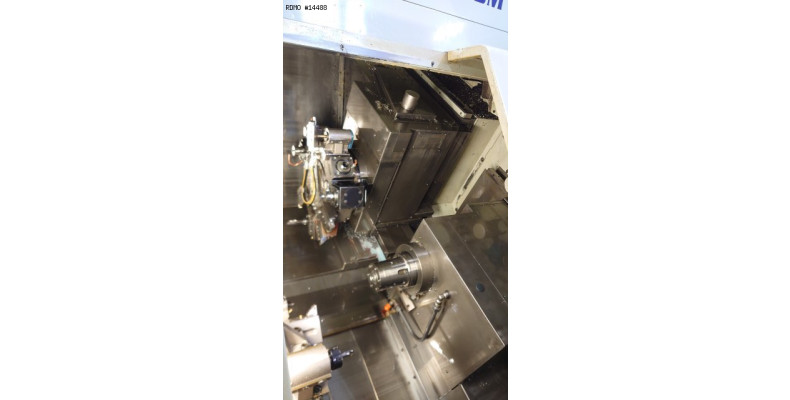

TURRET 1
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 160 / 390 [mm]
- Y stroke : +60 / -40 [mm]
- Live tools speed : 4.000 [rpm]
- Live tools power : 3,7 [kW]
TURRET 2
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 158 / 240 [mm]
- Live tools speed : 4.000 [rpm]
- Live tools power : 3,7 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 4.100 x 2.150 [mm]
- Machine height : 2.200 [mm]
- Machine weight : 6.200 [kg]
MACHINE HOURS
- Number of working hours : 32.878 [h]
Equipamiento

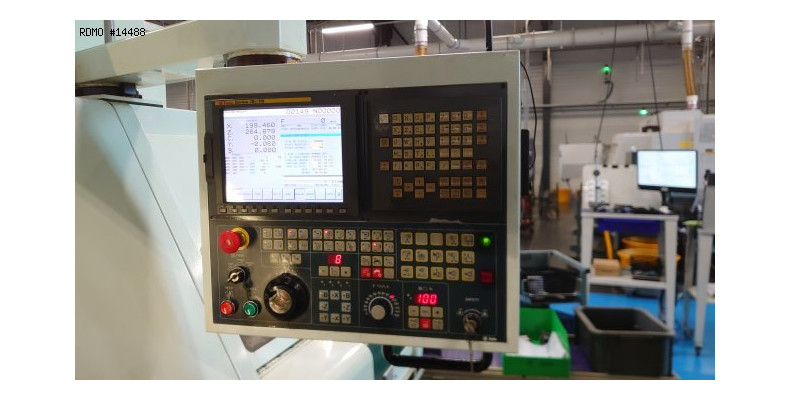

- CNC : Fanuc 18-iTB

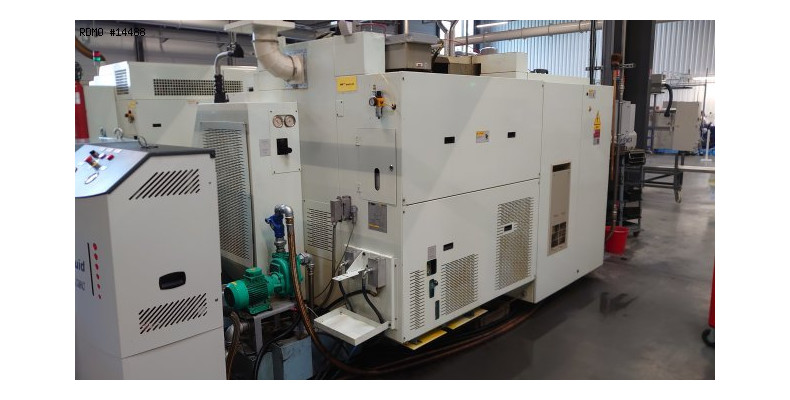

- Coolant tank

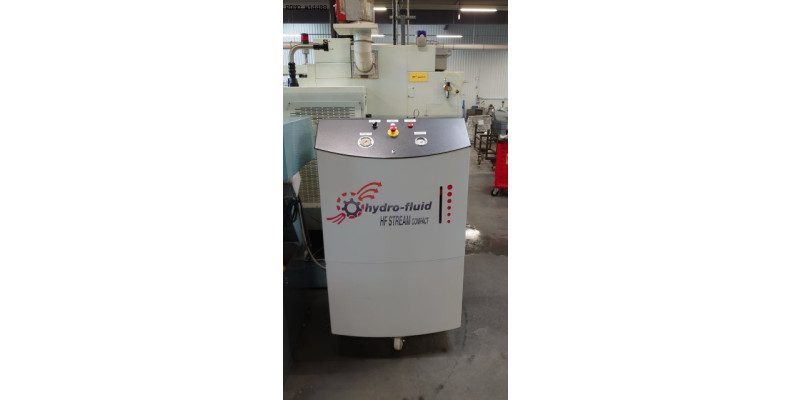

* with high-pressure pump : Hydro-fluid
- Chips conveyor
- Tool probe : Renishaw
- Parts catcher
- Parts conveying strip

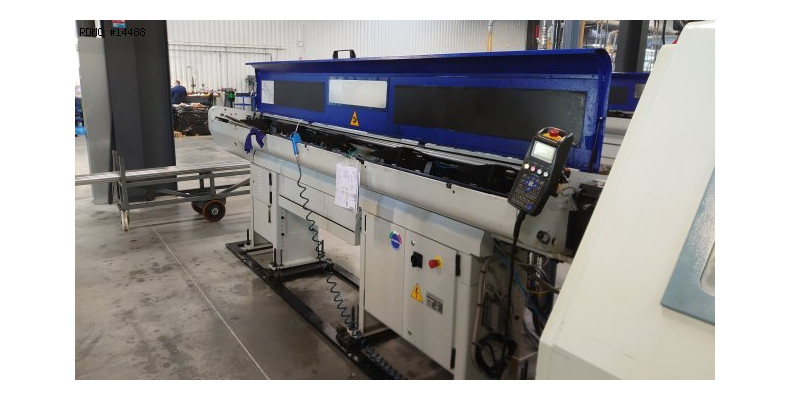

- Bar loader : IEMCA BOSS 545 E
- Collet chuck : 2
