Marca : Reicherter
Modelo : BFR 3
Año : 2004
N° Serie : 6435009042
Marca : Reicherter
Modelo : BFR 3
Año : 2004
N° Serie : 6435009042

Características & Equipamiento

Características
- Brinell tests 3000 Kg and 750 Kg, HB according to DIN EN ISO 6506-01
- Test height with table : 0 - 610 [mm]
- Test height without table : 370 - 1.120 [mm]
- Clamping surface on table : 500 x 600 [mm]
- Clamping surface on sole : 810 x 1.425 [mm]
- Reach : 310 - 1.095 [mm]
- Arm swiveling : 220 [°]
- Test group swiveling around its axis : 180 [°]
- Vertical stroke of the test group : 750 [mm]
- Floor space (except hydraulic unit) : 810 x 2.155
[mm]
- Height : 3.500 [mm]
- Weight : 4.000 [kg]
- Voltage : 3x 400 [V]
- Frequency : 50/60 [Hz]
- Installed power : 3,5 [kVA]
Equipamiento

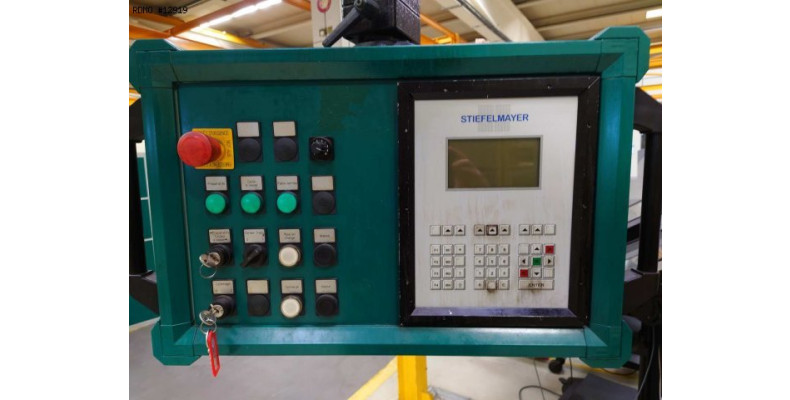

- Control panel : Stiefelmayer
- Optical measuring system : Zeiss
- Measuring electronics HM-Control
- 2 measuring rules of imprint size : Heidenhain
- Warning light : good / outside the tolerance range
- Statistic function
- Exit for PV printing
- Table

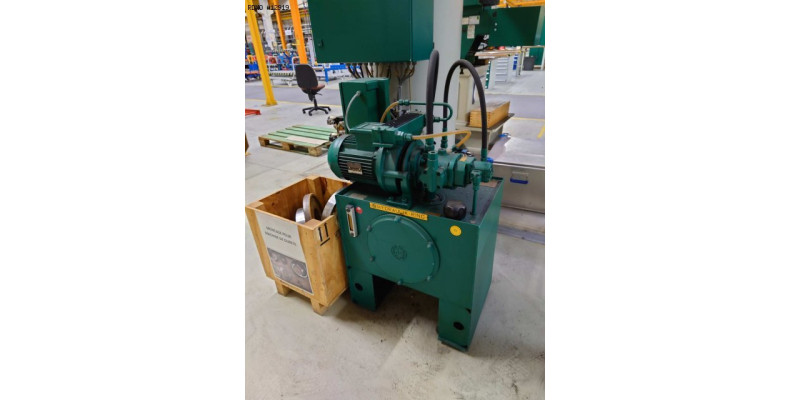

- Hydraulic unit
Especificacion técnica a descargar

Descripción

Radial type for high volume parts Máquina herramienta de segunda mano para la venta
