Sw BA S03-22 4 ejes

Fresado Centro de mecanizado vertical

12872

Marca : Sw

Modelo : BA S03-22

Año : 2008

N° Serie : 1830501

12872

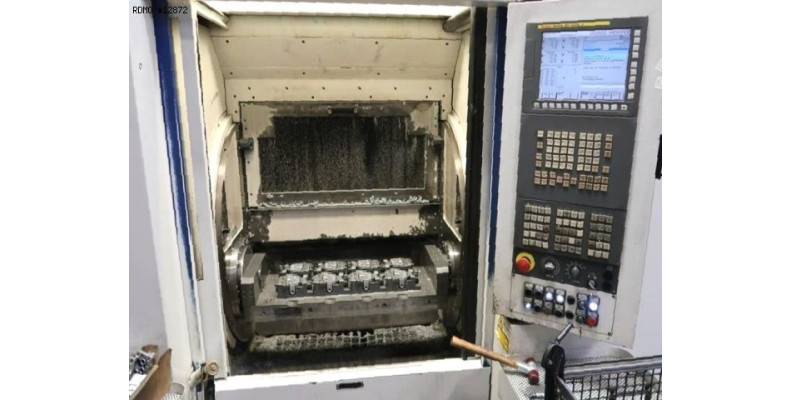

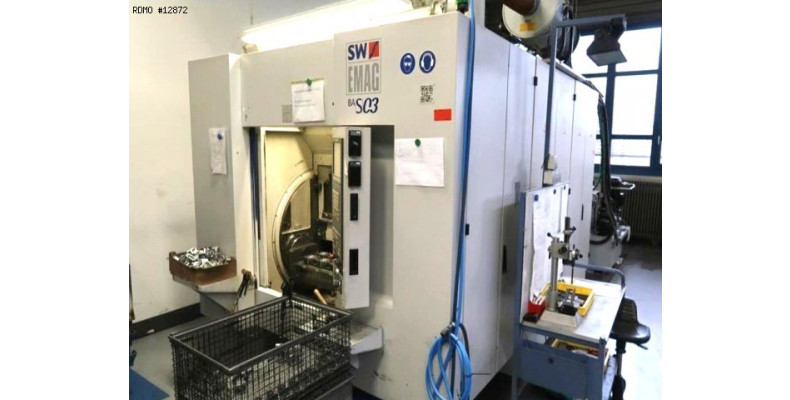

Sw BA S03-22 4 ejes

Fresado Centro de mecanizado vertical

Marca : Sw

Modelo : BA S03-22

Año : 2008

N° Serie : 1830501

Preguntar por un precio

Características

- Number of axes : 4
- Number of spindles : 2
MILLING SPINDLE : 2
- Tool holder type : HSK63
- Spindle power : 15,5 [kW]
- Spindle speeds : 17.500 [rpm]
- Distance between spindles : 300 [mm]
LINEAR AXES
- Travels on X/Y/Z axes : 300 x 650 x 400 [mm]
- Rapid traverses rates (X/Y/Z) : 75.000 [mm/min]
A ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0,001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Umbrella
- Tool magazine capacity : 2x 32

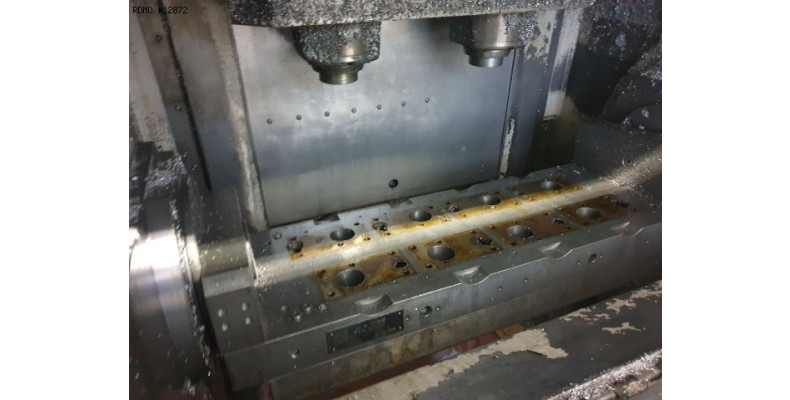

PALLET CHANGER
- Pallet size : 730 x 360 [mm]
- Number of pallets : 2
- Number of workpiece post per pallet : 8
- Distance between 2 posts : 75 [mm]
- Maximum weight upon table : 400 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 70 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.900 x 3.260 [mm]
- Machine height : 3.100 [mm]
- Machine weight : 8.800 [kg]
MACHINE HOURS
- Number of working hours : 13.182 [h]

Equipamiento

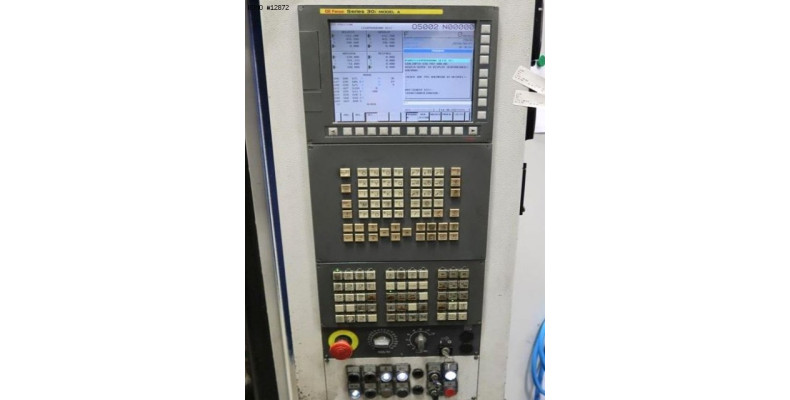

- CNC : Fanuc 30i-Modele A
- Interface : Ethernet / RS232 / PCMCIA
- Linear scales
- 3 colors status lamp
- Rigid tapping
- Worpiece hydraulic clamping for each pallet : 0 - 150 [bars]
- Tool breakage detection : laser
- COOLANT TANK : 400 [l]
* with high-pressure pump : 70 [bars]

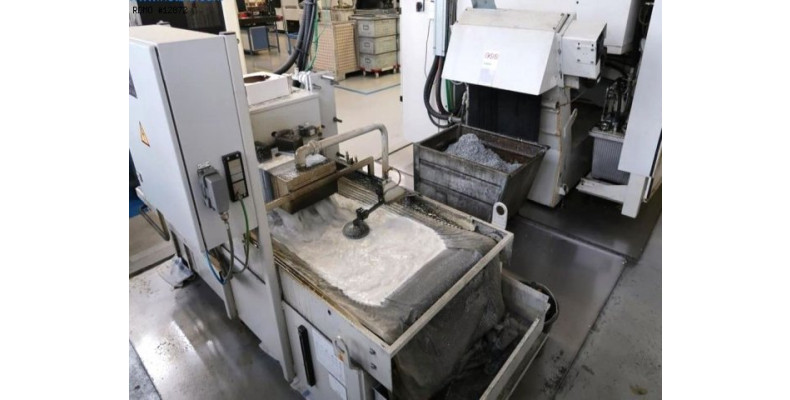

* With paper filtering unit : KNOLL PF160/800
* with cooling unit for coolant
- Coolant through spindle

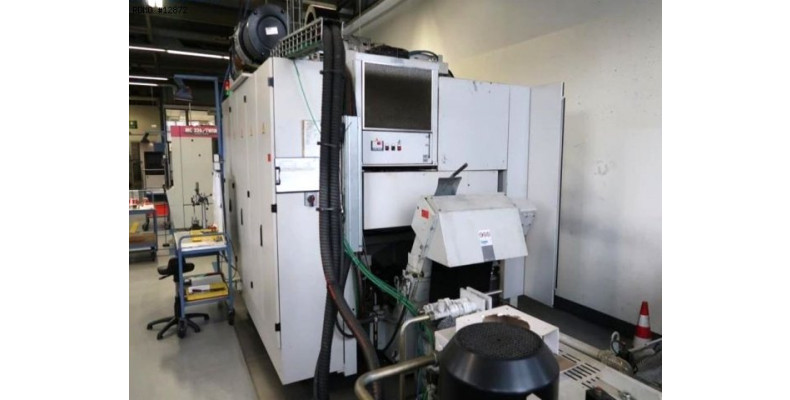

- Chips conveyor : Rear

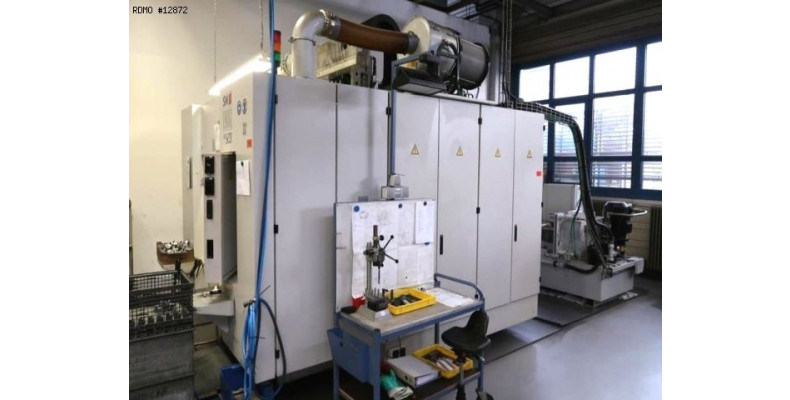

- Oil mist extractor : LOSMA Darwin 1200
- Spindle cooling unit
