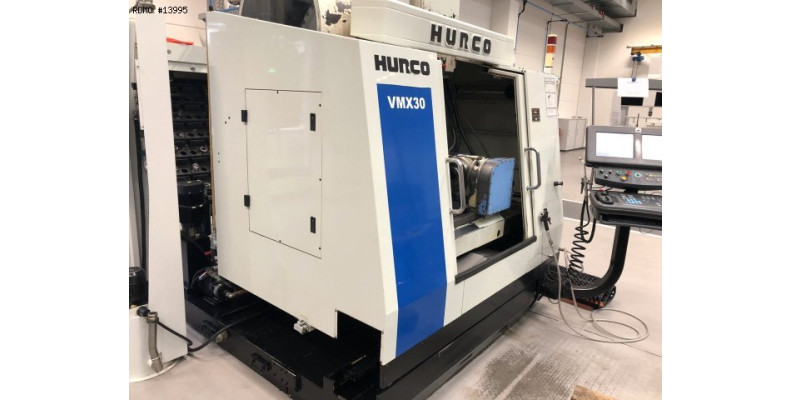

Hurco VMX 30 5 ejes

Fresado Centro de mecanizado vertical

13995

Especificacion técnica a descargar

Marca : Hurco

Modelo : VMX 30

Año : 2006

N° Serie : M342-06211046DHC

13995

Hurco VMX 30 5 ejes

Fresado Centro de mecanizado vertical

Especificacion técnica a descargar

Marca : Hurco

Modelo : VMX 30

Año : 2006

N° Serie : M342-06211046DHC

Preguntar por un precio

Características

- Number of axes : 5 MILLING SPINDLE - Tool holder type : ISO40 - Spindle power : 13,2 [kW] - Spindle speeds : 10.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 762 x 508 x 610 [mm] - Rapid traverses rates (X/Y/Z) : 30 / 30 / 20 [m/min] - Distance table / spindle nose (min./max.) : 10 - 620 [mm] TOOL CHANGER - Auto. Tool Changer type : Loading arm - Tool magazine capacity : 24 TABLE - Table dimensions : 1.020 x 510 [mm] - Maximum weight upon table : 1.360 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 25 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.180 x 2.370 [mm] - Machine height : 2.775 [mm] - Machine weight : 4.700 [kg] MACHINE HOURS - Number of working hours : 18.845 [h]

Equipamiento

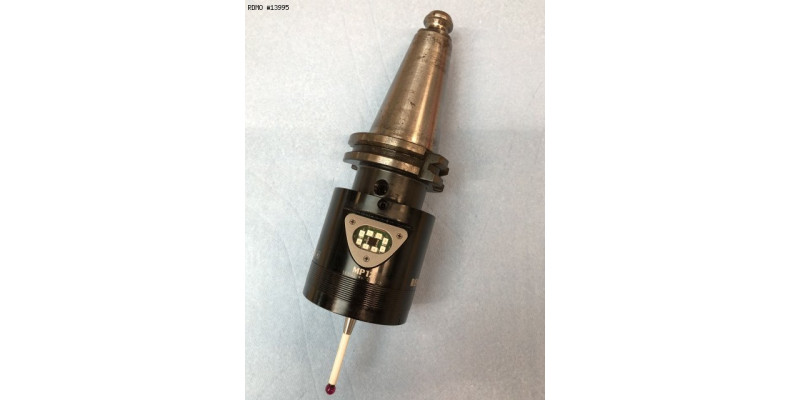

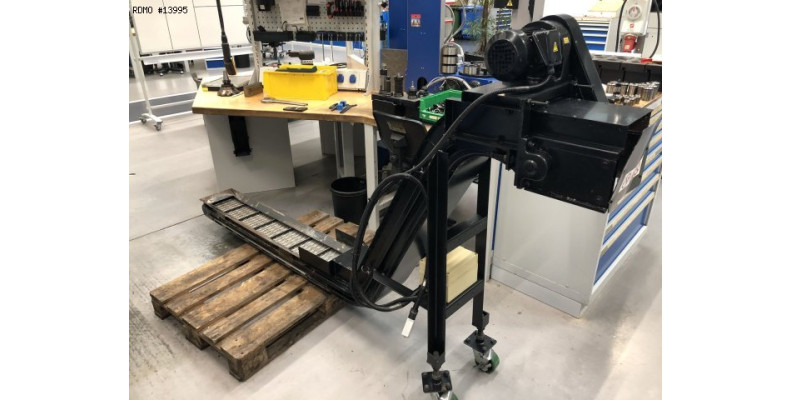

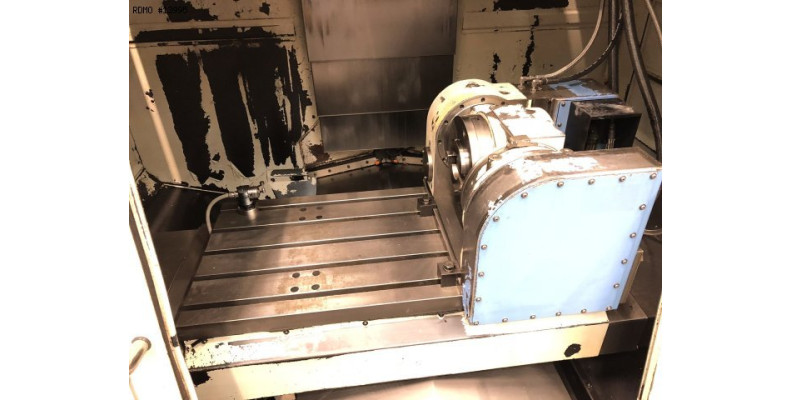

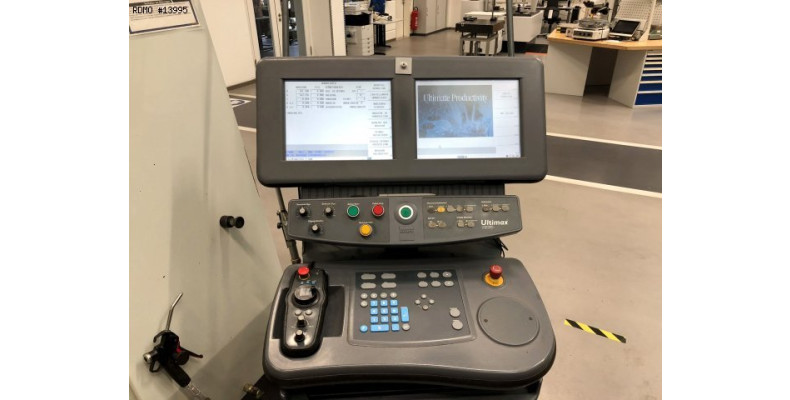

- CNC : HURCO Ultimax 4 - Interface : Ethernet / USB / RS232 - Interactive programming - Electronic handwheel - Rigid tapping - 3 colors status lamp - Type of divisor : full 4th-5th axis * manufacturer : KITAGAWA * model : TT251 HYY01 (2006) * Table dimensions : 250 [mm] * center height : 225 [mm] * Travel 4th axis : -30 / +110 [°] * Indexing precision 4th axis : 0,001 [°] * Travel 5th axis : 360 [°] * Indexing precision 5th axis : 0,001 [°] - COOLANT TANK : 190 [l] * with high-pressure pump : 20 [bars] * With washing gun - Coolant through spindle - Chips conveyor - Tool probe : Renishaw TS27R - Workpiece probe : Renishaw MP12

Especificacion técnica a descargar
