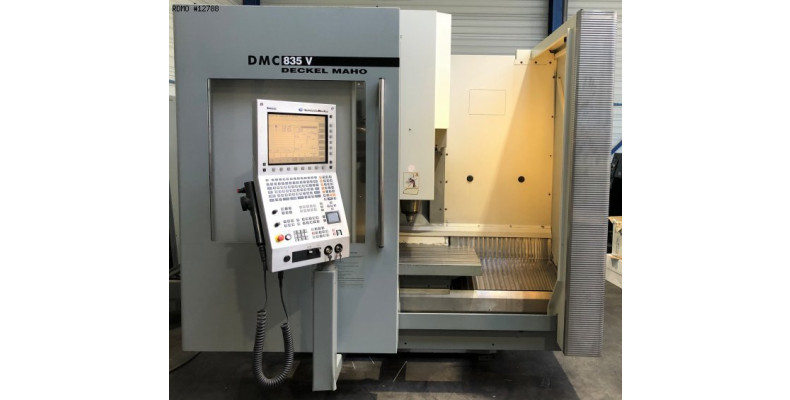

Dmg DMC 835 V 3 ejes

12788
Marca : Dmg
Modelo : DMC 835 V
Año : 2007
N° Serie : 15415029334
12788
Dmg DMC 835 V 3 ejes
Marca : Dmg
Modelo : DMC 835 V
Año : 2007
N° Serie : 15415029334

Características & Equipamiento

Características
- Number of axes : 3 MILLING SPINDLE - Tool holder type : ISO40 - Spindle power : 9 [kW] - Spindle speeds : 10.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 835 x 510 x 510 [mm] - Rapid traverses rates (X/Y/Z) : 30.000 [mm/min] TOOL CHANGER - Auto. Tool Changer type : Loading arm - Tool magazine capacity : 20 TABLE - Table dimensions : 1.000 x 560 [mm] - Maximum weight upon table : 800 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 20 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.100 x 2.700 [mm] - Machine height : 2.700 [mm] - Machine weight : 4.200 [kg] MACHINE HOURS - Number of working hours : 20.864 [h]
Equipamiento

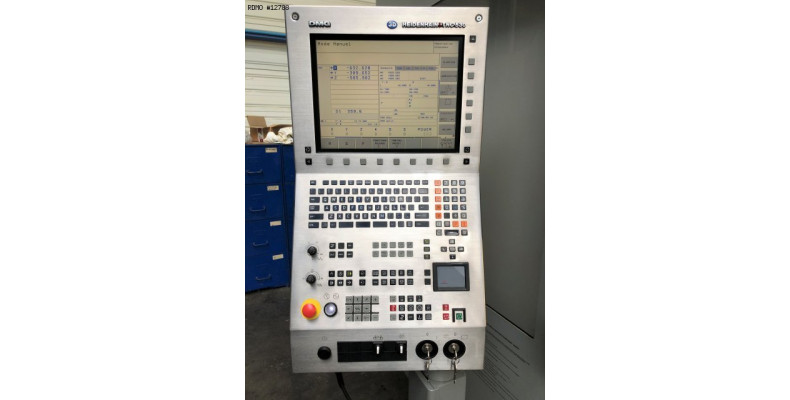

- CNC : Heidenhain iTNC530 - Electronic handwheel - Linear scales - Coolant tank * With washing gun - Chips conveyor
