10896

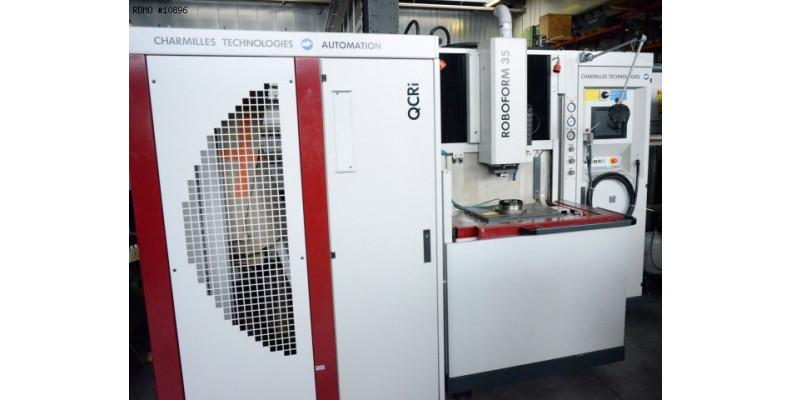

Marca : Charmilles
Modelo : ROBOFORM 35 QCRI
Año : 2000
N° Serie : 640399
10896
Marca : Charmilles
Modelo : ROBOFORM 35 QCRI
Año : 2000
N° Serie : 640399

Características & Equipamiento

Características
- Equipment dimensions (width x length x height) : 1900 x 1690 x 2400 [mm]
- Total equipment weight (without dielectric) : 2800
[kg]

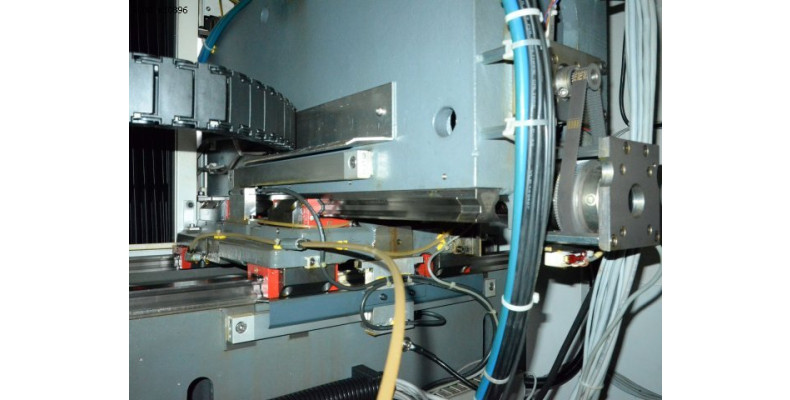

- Strokes X, Y, Z : 350 x 250 x 300 [mm]
- Movement measuring device : linear glass
rules

WORK AREA :
- Tank type : retractable tank
- Tank dimensions (width x length x height) : 800 x 550 x 370
[mm]

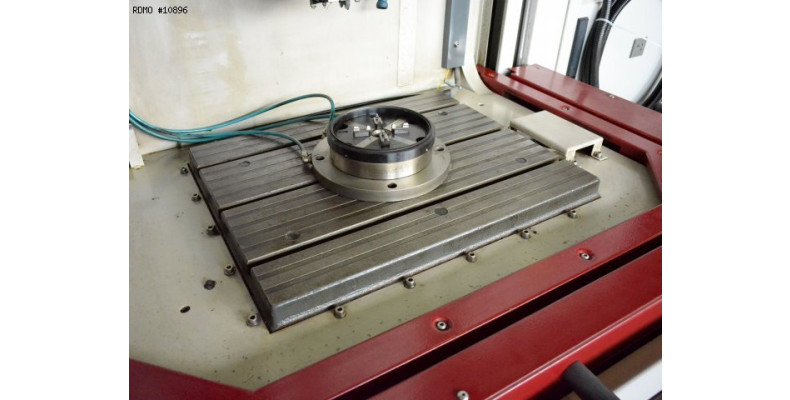

- Table dimensions : (width x length) : 500 x 400 [mm]
- Max. electrode weight : 50 [kg]
- Max. part weight : 500 [kg]
- Max. part dimensions (width x length x height) : 780 x 400 x 300 or 590 x 530 x 300 [mm]
- Min./Max. distance between chuck and table : 150/450 [mm]

GENERATOR :
- Type : ISOPULSE
- Standard machining power : 64 A

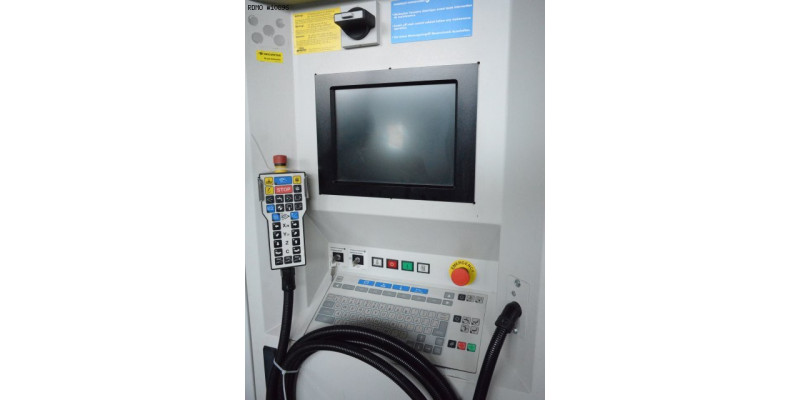

NUMERICAL CONTROL :
- Screen : CRT 14' color
- Controlled axes : X, Y, Z and C simultaneously
- Modules : Axis C
Equipamiento

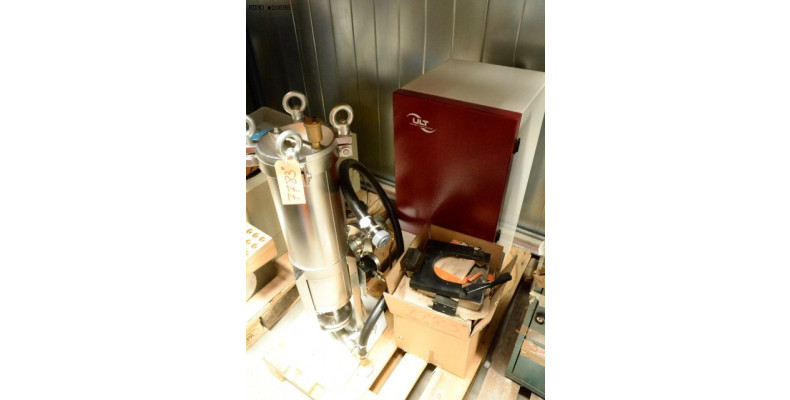

- 1 cooling unit MARKSA CPW 900 M GC
- 1 aspiration ULT LAS 260
- 1 oil filtration FUHR 5ALKF-10/F50
- 1 magazine EROWA linear tool changer with 54 positions.

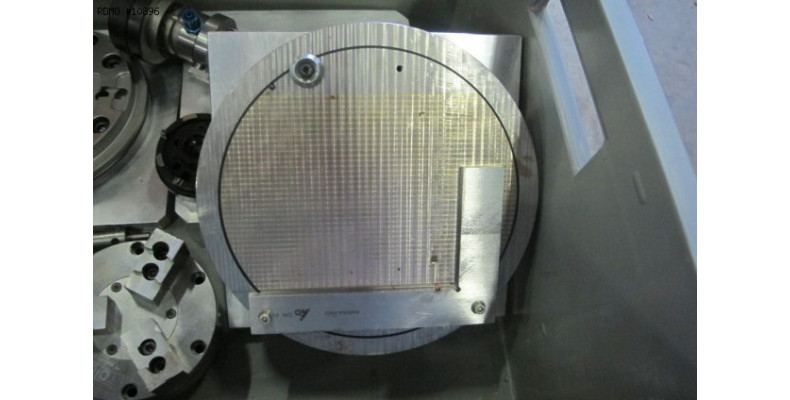

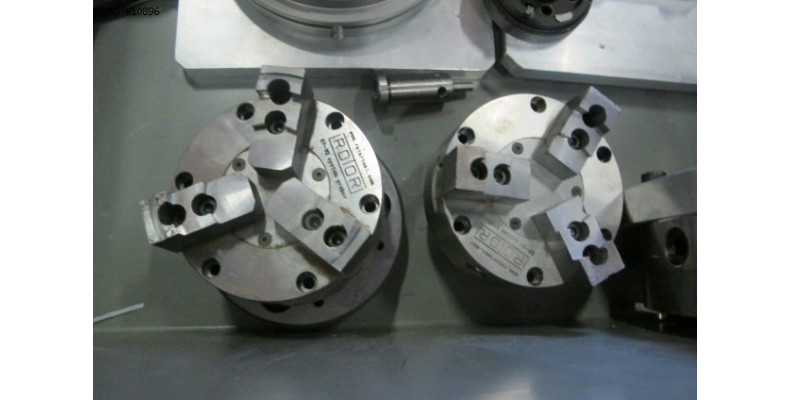

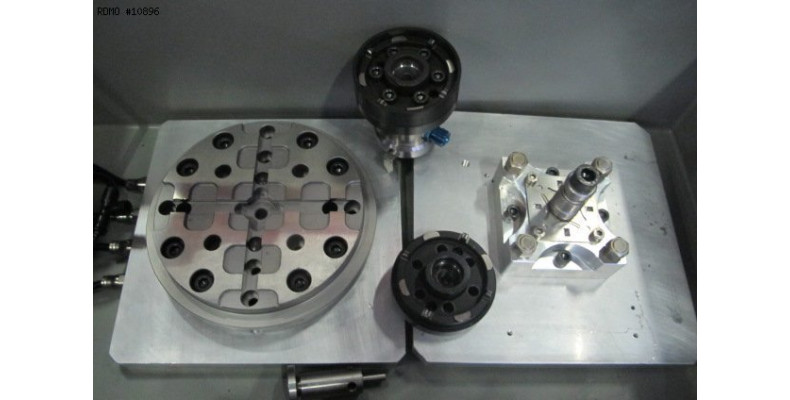

Tooling: fitting, magnetic plate (please see
photos)
